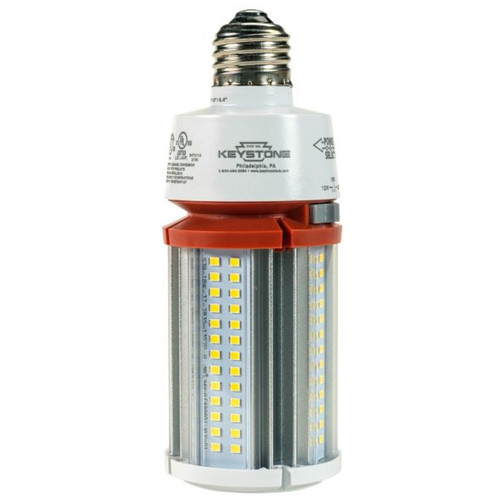

Keystone KT-LED22PSHID-E26-850-D /G4

SKU:
KT-LED22PSHID-E26-850-D /G4
Typically ships in 2-3 business days* View full description
$73.38
Customer Reviews

Description

HID Replacement LED Lamp | Power Select | 5000K | E26 (Medium) Base

The DirectDrive series of HID LED lamps by Keystone Technologies are an excellent choice to upgrade your fixture to long lasting, energy efficient LED illumination. Being wattage selectable, this lamp allows the user to select between 3 different wattage and resulting lumen output levels to suit their preference. This lamp is designed to replace up to 70-100W metal halide HID lamps. The internal driver eliminates the need for an external driver or ballast - allowing users to install this lamp directly into existing fixtures - and an integrated heat sink efficiently dissipates heat and guides intrusive water out of the lamp.

Features

  • Replacement for conventional metal halide lamp
  • Environmentally friendly: No mercury used
  • Instant startup
  • Integral driver eliminates the need for external driver or ballast; includes 4kV surge protection
  • Not for use with standard dimmers; see instructions
  • 50,000+ hour lifetime
  • Operating temperature: −30°C/−22°F to 45°C/113°F
  • Suitable for use in fully enclosed fixtures
  • Minimum lamp compartment dimensions: 6.0" × 6.0" × 6.4"
  • UL listed
  • IP64 rated; integrated heat sink quickly dissipates heat and guides water intrusion out of the lamp

Downloads


Caution

Use only non-shunted lamp-holders. Do not install product in a fixture with shunted lamp-holders (found in all fixtures using instant start ballasts). If the current lamp-holders are shunted, remove them and replace them with non-shunted lamp-holders. Make new connections directly to terminals as indicated above.

Disclaimers

*This product is built to order typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time.  All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. Keystone has multiple warehouse's around the country to help serve you better.

Extra Information

Brand:
Keystone Technologies
UPC:
843654138473
Catalog No:
KT-LED22PSHID-E26-850-D /G4
Wattage:
Selectable 22W/18W/12W
Color Temperature:
5000K
Base:
E26 (Medium)
CRI:
>80
Life Hours:
50,000
Lumens:
Up to 3190 Lumens
Equivalent:
70W/100W
UL Listed:
Yes
Voltage:
120–277V
Warranty:
5 Year
