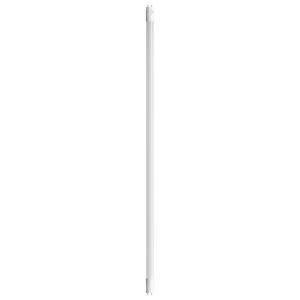

10T8/LED/48/CCT-SEL/DR Adjustable 4-Foot LED T8 Replacement Tube | CCT Selectable | Type A Ballast-Compatible Retrofit
Upgrade existing fluorescent fixtures without rewiring using this plug-and-play Type A LED tube from Satco. Its selectable color settings let you tailor ambience across workspaces, while high efficacy and long life reduce energy and maintenance costs. Dimmable performance on compatible ballasts provides added control and comfort.
KEY FEATURES:
- Simple Retrofit: Installs quickly with compatible electronic ballasts—no rewire required.
- Tunable Appearance: Select 4000K, 5000K, or 6500K to match tasks and environments.
- High Output: 1,800 lumens delivers bright, even illumination with a wide 220° beam.
- Comfortable Light: Frosted lens helps reduce glare; dimmable on supported ballasts.
- Reliable Performance: 50,000-hour rated life and 5-year limited warranty minimize downtime.
- Rebate-Ready: DLC approved for potential energy incentives.
APPLICATIONS:
- Offices and commercial workspaces
- Educational facilities and classrooms
- Retail aisles and back-of-house areas
- Usage tip: Choose 4000K for balanced task lighting, 5000K or 6500K for crisp, high-visibility areas.
SPECIFICATIONS:
- Wattage: 10W
- Fluorescent Equivalent: 32W
- Voltage: 120V-277V
- Ballast Type: Type A
- Ballasting Requirements: Ballast required (check compatibility)
- Shape: T8
- Base: Medium Bi Pin (G13)
- Lamp Type: Linear
- Technology: LED
- CCT: 4000K/5000K/6500K
- CRI: 83
- Lumens: 1800
- Beam Spread: 220°
- Dimmable: Yes (with compatible ballasts)
- Operating Frequency: 50/60 Hz
- Power Factor: 0.9
- THD: <25%
- Operating Temperature: -20°C (-4°F) to +45°C (+113°F)
- MOL (Length): 48.00 in.
- MOD (Diameter): 1.00 in.
- Material: Plastic
- Lens Finish: Frost
- Lens Material: Glass
- Housing Color: White
- Hours Rated: 50,000
- Location Rating: Damp
- Safety Listing: cULus Listed
- DLC Approved: Yes (DLC ID: PGH969QL)
- California Status: Lawful for sale
- RoHS Compliant: Yes
- FCC Compliant: Yes
- NSF Approved: Yes
- Warranty: 5 Year Limited - T8 LED Bulbs
CERTIFICATIONS & ADDITIONAL NOTES:
- Tube Guard Use: Not approved
