Description
Commercial Canopy Fixture | Up to 17,325 Lumens | 120-277V | 3000K/4000K/5000K Selectable

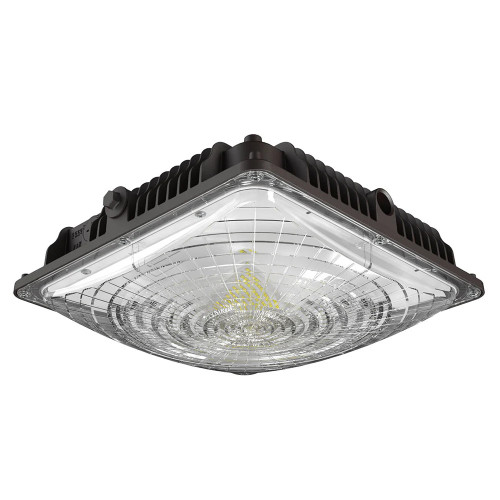

Designed for parking garages, gas stations, and commercial canopies, this 110W High Output LED Parking Garage Light delivers up to 17325 lumens and features field selectable wattage settings of 45W, 65W, 90W, or 110W for on-site flexibility. Selectable 3000K Warm White, 4000K Cool White, or 5000K Daylight settings allow the fixture to be tailored to the application, the WSD-CP456590110W27-345K-D can have an optional motion sensor and emergency battery backup accessories provide additional control and life safety capability.
Product Specifications
- Wattage Selectable: 45W / 65W / 90W / 110W
- Maximum Lumen Output: Up to 17325 lumens
- CCT Selectable: 3000K / 4000K / 5000K
- Voltage: 120-277V
- CRI: >70
- Efficacy: >140 lumens per watt
- Beam Angle: 155 degrees
- Dimming: 1-10V continuous dimming
- Power Factor: >0.95
- Driver Efficiency: >89%
- LED Type: 2835 LEDs
- Location Rating: Wet location
- Operating Temperature: -40F to 104F
- Fixture Dimensions: 11.52 x 11.52 x 3.80 inches
- Housing: Die cast aluminum with polycarbonate lens
- Finish: Dark Bronze
- Life Rating: 50000+ hours
- Warranty: 5 year limited
- Model: WSD-CP456590110W27-345K-D
Available Options
- Microwave Motion Sensor Option (Sold Separately)
- 4W Emergency Battery Backup Driver Option (Sold Separately)
- Remote Programming Control Available
Benefits
- Field selectable wattage allows output to be adjusted on site
- High output performance supports higher mounting heights
- Selectable CCT provides application flexibility
- Broad 155 degree distribution improves uniform coverage
- Optional controls support energy savings and safety upgrades
- Ideal for retrofit or new construction projects
Applications
- Parking garages
- Gas stations
- Commercial canopies
- Warehouse loading areas
- Covered walkways
- Security lighting
