Description

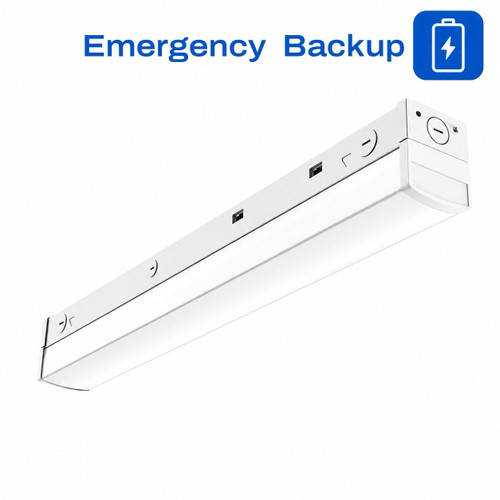

24" Commercial Strip Fixture | 10W-30W Selectable | 1400-4200 Lumens | 3000K-6500K | 90 Minute Power Failure Mode
Deco Lighting DLSL-GEN2-2MW30-EM is a 2 ft LED linear strip emergency fixture designed for commercial spaces that need adjustable light output, selectable color temperature, and battery backup capability. This flat lens strip luminaire offers 10W, 15W, 20W, 25W, and 30W selectable wattage, delivers 1400 to 4200 lumens, and allows field selection of 3000K, 3500K, 4000K, 5000K, or 6500K to match project requirements.
Product Specifications
- Brand: Deco Lighting
- Model: DLSL-GEN2-2MW30-EM
- Series: DLSL-GEN2 Deco Linear Strip Luminaire
- Product Type: Emergency LED linear strip fixture
- Emergency Option: EM emergency backup
- Fixture Length: 2 ft
- Profile: Flat lens
- Selectable Wattage: 10W, 15W, 20W, 25W, 30W
- Lumen Output: 1400, 2100, 2800, 3500, 4200 lumens
- Selectable CCT: 3000K, 3500K, 4000K, 5000K, 6500K
- Efficacy: 135 lumens per watt
- Beam Angle: 110 degrees
- Dimensions: 24 in. L x 2.5 in. W x 3.1 in. H
- Construction: Powder-coated steel stamping, polycarbonate end cups, and high-transparency diffuser
- Lens Access: Hinged open design with tool-less access, opens up to 110 degrees
- Certifications: UL Listed, DLC Premium Listed
- Warranty: 5 years included
- Voltage: 120-277V
- Dimming: 0-10V Dimming
- Emergency Runtime: 90 mins
- Emergency Battery Output: 4W Power @ 540 lumens
Benefits
- Emergency backup option helps support egress and safety lighting requirements in commercial spaces.
- Wattage selectable design lets installers choose the required light output in the field instead of stocking multiple fixtures.
- CCT selectable design allows one fixture to cover warm white, neutral white, cool white, and daylight applications.
- Compact 2 ft size is ideal for smaller spaces where a full 4 ft strip fixture is not needed.
- Tool-less hinged access simplifies installation, cleaning, and service.
- High-transparency diffuser provides clean, even illumination for commercial interiors.
- DLC Premium listing supports energy-conscious commercial lighting projects.
Applications
- Emergency egress lighting
- Commercial offices
- Hallways and corridors
- Utility rooms
- Storage rooms
- Retail back rooms and stockrooms
- Schools and institutional buildings
- Maintenance areas
- General commercial strip light replacement projects
FAQ
Does this 2 ft LED strip light include emergency battery backup?
Yes. The DLSL-GEN2-2MW30-EM includes emergency battery backup for applications that require emergency egress lighting during a power failure.
How long does the emergency backup operate?
The emergency backup provides 90 minutes of emergency runtime during a power outage.
What is the emergency battery output?
The emergency battery provides 4W of emergency power and produces 540 lumens in emergency mode.
What size is this emergency LED strip fixture?
This is a 2 ft linear strip fixture. The fixture measures 24 inches long, 2.5 inches wide, and 3.1 inches high.
Is the wattage selectable?
Yes. This fixture is field selectable at 10W, 15W, 20W, 25W, or 30W, with lumen output from 1400 to 4200 lumens.
Is the color temperature selectable?
Yes. The fixture is CCT selectable at 3000K, 3500K, 4000K, 5000K, or 6500K.
What voltage does this fixture use?
This emergency LED strip light operates on 120-277V, making it suitable for many commercial and institutional lighting projects.
Is this fixture dimmable?
Yes. This fixture supports 0-10V dimming for compatible commercial lighting control systems.
Where is this 2 ft emergency strip light commonly used?
It is commonly used in corridors, utility rooms, storage areas, stairwell support areas, offices, schools, retail back rooms, and other commercial spaces that need compact emergency lighting.
Disclaimers
*Typically ships within 5 to 7 business days. Lead times are estimates and may vary based on quantity and availability. Ships directly from the manufacturer.
