Description
Commercial Outdoor Bronze LED Area Light | Wall or Flat Square Pole Mount | 150W/200W/240W Selectable | Type 3/5 Optics | 3000K/4000K/5000K

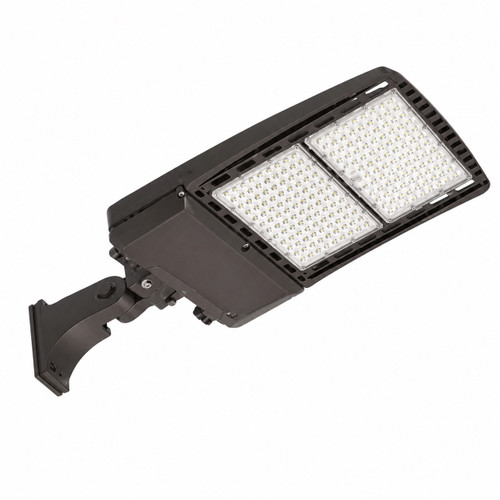

Deco SVAL-GEN3-MW240 with adjustable mounting arm is a Generation 3 Sigma Vortex LED area flood light designed for wall mounting or mounting to the flat face of a square pole. This commercial outdoor fixture is built for parking lots, building perimeters, site lighting, walkways, loading areas, storage yards, and exterior security lighting. It features selectable 150W, 200W, and 240W operation, selectable 3000K, 4000K, and 5000K color temperature, selectable Type 3 and Type 5 optics, 0-10V dimming, 120-277V operation, built-in photocell with on/off switch, and high output performance up to 33,600 lumens.
Product Specifications
- Brand: Deco Lighting
- Model Number: SVAL-GEN3-MW240 with adjustable mounting arm
- Spec Sheet Model Reference: SVAL-GEN3-MWO240
- Series: Sigma Vortex Area Flood Light
- Fixture Type: LED area flood light
- Generation: GEN3 - multi watt, multi CCT, and optic switchable
- Mounting: Adjustable arm for wall mounting or flat square pole mounting
- Mounting Note: Designed for flat mounting surfaces; not a round pole slip fitter configuration
- Wattage: 150W/200W/240W selectable
- Lumen Output: 21,000/28,000/33,600 lumens
- Color Temperature: 3000K/4000K/5000K selectable
- Optics: Type 3 and Type 5 selectable
- Input Voltage: 120-277V
- Dimming: 0-10V dimming standard
- Photocell: Built-in photocell with on/off switch
- Housing: Die-cast aluminum housing
- Finish: Bronze finish standard
- Finish Protection: Corrosion-resistant polyester powder coat finish
- Sensor Port: Integrated plug-and-play sensor port
- Surge Protection: L-N: 6KV, UN-PE: 6KV; optional L-N: 20KV, UN-PE: 10KV
- Location Rating: Suitable for damp locations
- Rated Life: 50,000 hours at 50C Ta listed in features
- Lifespan: 100,000 hours listed in product description
- Certifications: UL listed, DLC Listed Premium
- Fixture Dimensions: 18.5 in x 12.2 in x 2.8 in
- Available Options: Emergency backup, microwave sensor, PIR sensor, U-bracket, trunnion mount, pole mount, and slip-fitter mount
- Warranty: 5 year warranty included, 10 year optional
Benefits
- Adjustable mounting arm supports wall mounting or mounting to the flat face of a square pole.
- Clear mounting language helps distinguish this version from a round pole slip fitter configuration.
- Selectable wattage gives installers the ability to choose 150W, 200W, or 240W based on site lighting needs.
- Selectable Type 3 and Type 5 optics help support different parking lot, perimeter, walkway, and open area lighting layouts.
- Selectable 3000K, 4000K, and 5000K CCT allows warmer, neutral, or daylight-style exterior lighting from one fixture.
- Built-in photocell with on/off switch supports dusk-to-dawn operation when enabled.
- High output performance up to 33,600 lumens makes the fixture suitable for large commercial exterior areas.
- 0-10V dimming allows integration with compatible lighting control systems.
- Die-cast aluminum housing and corrosion-resistant powder coat finish support long-term outdoor performance.
- Integrated plug-and-play sensor port allows compatible sensor options to be added when needed.
- GEN3 switchable design helps reduce SKU complexity for contractors and commercial lighting projects.
Applications
- Parking lots
- Commercial site lighting
- Building perimeter lighting
- Wall-mounted exterior area lighting
- Flat square pole mounted area lighting
- Parking lot pole lighting where a square pole arm mount is required
- Industrial exterior lighting
- Loading docks
- Storage yards
- Walkways
- Outdoor security lighting
- Commercial and industrial LED retrofit projects
