Description
2 ft x 2 ft LED Drop Ceiling Panels | 20W/25W/30W/35W/40W | 3000K, 3500K, 4000K, 5000K or 6500K | 120-277V | Set of 4

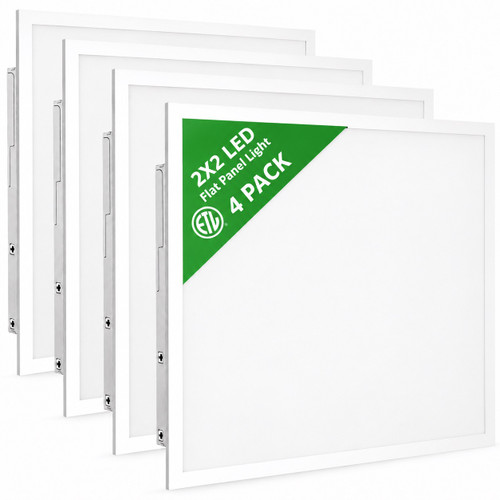

Contractor Essentials 2x2 Square LED Flat Panel Light 4-Pack is built for contractors, electricians and facility maintenance teams replacing fluorescent troffers or installing new commercial grid-ceiling lighting. Each back-lit LED panel offers five selectable wattages from 20W to 40W and five selectable color temperatures from 3000K to 6500K, allowing one 4-pack to cover multiple project requirements. The panels operate on 120-277V, support 0-10V dimming and install directly into conventional 2x2 suspended ceiling grids.
Product Specifications
- Brand: Contractor Essentials
- Product Type: Back-lit LED flat panel light
- Package Quantity: 4 fixtures
- Fixture Size: 2 x 2 feet
- Shape: Square
- Selectable Wattage: 20W, 25W, 30W, 35W or 40W
- Wattage Selection: Five-position field-adjustable switch
- Selectable CCT: 3000K, 3500K, 4000K, 5000K or 6500K
- CCT Selection: Five-position field-adjustable switch
- Maximum Efficacy: Up to 130 lm/W
- Maximum Nominal Output: Up to approximately 5,200 lumens at 40W based on 130 lm/W
- CRI: Greater than 80
- Input Voltage: 120-277V AC
- Dimming: 0-10V
- Power Factor: Greater than 0.95 at full load
- Total Harmonic Distortion: Less than 15% at full load
- Housing: White high-strength metal frame
- Lens Assembly: PMMA lens with polystyrene diffuser
- Mounting: Recessed installation in conventional grid ceilings
- Fixture Dimensions: 23.74 inches x 23.74 inches x 1.38 inches
- Operating Temperature: -22 F to 104 F
- Estimated Life: Greater than 54,000 hours at 77 F
- Warranty: 5 years
Downloads
Benefits
- Sold as a contractor-friendly 4-pack for multi-fixture installations and retrofit projects.
- Five selectable wattages reduce the need to stock separate 20W, 25W, 30W, 35W and 40W panel models.
- Five selectable color temperatures allow installers to match existing lighting or project specifications at the jobsite.
- Square 2x2 format drops directly into compatible conventional suspended ceiling grids.
- Back-lit construction provides uniform illumination while helping reduce visible hot spots and shadows.
- 0-10V dimming works with compatible commercial lighting controls and energy-management systems.
- 120-277V operation supports common commercial branch voltages.
- Low-profile 1.38-inch housing is useful where plenum space is limited.
- Up to 130 lm/W efficacy provides strong commercial light output with efficient LED operation.
- One 4-pack can be configured differently fixture by fixture when project conditions require different wattage or CCT settings.
Applications
- Office lighting
- School classrooms
- Healthcare facilities
- Retail stores
- Commercial buildings
- Institutional facilities
- Conference rooms
- Hallways and common areas
- Tenant improvement projects
- Fluorescent 2x2 troffer replacement
- New suspended grid ceiling installations
Contractor 4-Pack for Commercial Projects
This product is sold as a 4-pack, making it a practical choice for contractors replacing multiple 2x2 fluorescent troffers or completing office, classroom, retail and commercial tenant-improvement projects. The factory packaging is also configured in quantities of four fixtures per carton.
Five Selectable Wattages
Each panel can be individually set to 20W, 25W, 30W, 35W or 40W. This gives contractors the ability to adjust light output after evaluating ceiling height, fixture spacing and room use rather than ordering separate wattage-specific panels.
At the maximum 40W setting and the listed efficacy of up to 130 lm/W, nominal calculated output can reach approximately 5,200 lumens. Actual delivered output can vary by operating conditions and selected configuration.
Five Selectable Color Temperatures
The CCT selector provides 3000K, 3500K, 4000K, 5000K and 6500K settings. Contractors can use one panel family for warm, neutral, cool white and daylight applications without carrying separate fixed-CCT SKUs.
For installations where several panels are visible together, set all fixtures to the desired color temperature before completing the ceiling installation.
2x2 Square Drop Ceiling Panel
The fixture measures 23.74 inches square and is designed for recessed installation in a conventional 2x2 suspended grid ceiling. Its 1.38-inch profile keeps the panel close to the ceiling plane while providing the clean appearance expected from modern commercial flat panel lighting.
Back-Lit LED Design
The back-lit construction uses a PMMA lens and polystyrene diffuser to provide uniform illumination across the face of the panel. The optical assembly is designed to help reduce hot spots, shadows and glare compared with exposed lamp systems.
0-10V Commercial Dimming
Each fixture supports 0-10V dimming for use with compatible commercial wall controls, occupancy systems and building-management systems. Dedicated dimming wiring is provided in addition to line, neutral and ground connections.
Fluorescent Troffer Replacement
These 2x2 square LED panels are well suited for replacing older fluorescent troffers in suspended grid ceilings. The selectable wattage allows contractors to adjust the new LED system based on required light levels instead of relying only on the fluorescent lamp count or wattage being removed.
Optional Lighting Controls
Compatible microwave sensing and Bluetooth control options are available for projects requiring occupancy sensing, daylight response or advanced lighting control. Control accessories are optional and are not included with the standard 4-pack unless specifically stated.
Before You Order
Confirm that the ceiling uses a conventional 2x2 suspended grid and that the available branch voltage is between 120V and 277V. Each fixture measures 23.74 inches x 23.74 inches x 1.38 inches.
Determine the desired wattage and color temperature before final commissioning. Because each fixture is independently selectable, panels within the same 4-pack can be configured differently when the project requires it.
What Is Included
The package includes four white 2x2 back-lit LED flat panel fixtures. Each panel includes an integrated 120-277V LED driver, 20W/25W/30W/35W/40W wattage selector, 3000K/3500K/4000K/5000K/6500K CCT selector and 0-10V dimming capability.
Installation
Installation must be completed by a qualified electrician in accordance with the National Electrical Code and applicable local requirements. Disconnect power before installation or service.
Remove the existing ceiling tile or fixture, place the LED panel into the 2x2 ceiling grid, complete the line, neutral, ground and optional 0-10V dimming connections, and select the required wattage and CCT before completing the installation.
Disclaimers
*This product is built to order typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship.
