Deco DCPS-GEN2-MW90-W-SEN | 10" Commercial LED Parking Garage Light with Occupancy Sensor | 40W/60W/90W | CCT Selectable | Dimmable

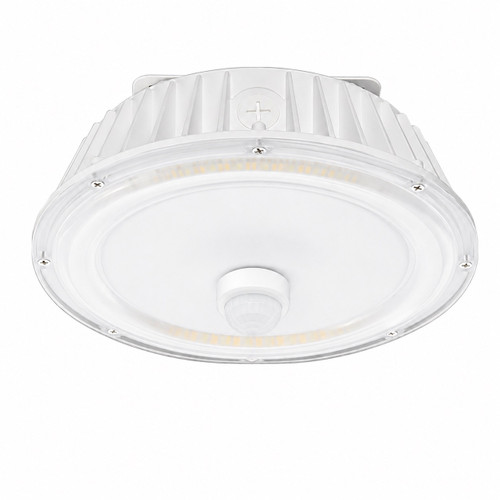

Deco DCPO-GEN2-MW90-W-SEN with sensing function is a round white LED canopy light fixture designed for parking garages, car ports, driveways, underpasses, walkways, and covered outdoor commercial spaces where motion-based lighting control is needed. This Generation II canopy fixture features selectable 40W, 60W, and 90W operation, selectable 3000K, 4000K, and 5000K color temperature, 0-10V dimming, die-cast aluminum construction, IP65 protection, IK08 impact rating, and a low-profile 10 inch round housing.
Product Specifications
- Brand: Deco Lighting
- Base Model Number: DCPO-GEN2-MW90-W-SEN
- Option: Sensing function installed
- Fixture Type: Round LED canopy light fixture with motion sensor
- Fixture Series: DCP Canopy
- Finish: White
- Wattage: 40W/60W/90W selectable
- Color Temperature: 3000K/4000K/5000K selectable
- CRI: Greater than 80
- Beam Angle: 90 degrees
- Efficacy: Greater than 130 lumens per watt
- Dimming: 0-10V dimming
- Input Voltage: AC 120-277V
- Housing Material: Die-cast aluminum
- Diffuser: Clear/opal anti-UV prismatic glass
- Lens Transmission: Greater than 90%
- IP Rating: IP65 water and rust proof protection
- Impact Rating: IK08 housing protection
- Certifications: UL certified, DLC Listed Premium
- Lifetime: L80 - 100,000 hours
- Warranty: 5 year warranty included, 10 year optional
- Dimensions: 10 inch diameter x 3.2 inch height
Benefits
- Motion sensor option helps reduce energy use by supporting occupancy-based lighting control.
- Selectable wattage allows one fixture to cover multiple lighting requirements.
- Selectable CCT lets the installer choose 3000K, 4000K, or 5000K based on the space.
- Low-profile 3.2 inch height provides a clean ceiling-mounted appearance.
- 0-10V dimming supports compatible dimming and control systems.
- Die-cast aluminum body helps support durability and heat dissipation.
- IP65 protection makes the fixture suitable for wet and demanding covered outdoor locations.
- IK08 housing protection and tamper proof fixings help improve vandal resistance in commercial spaces.
- High-efficiency LED performance helps reduce operating costs compared to older HID or fluorescent canopy fixtures.
Applications
- Parking garages
- Commercial parking structures
- Car ports
- Driveways
- Underpasses
- Walkways
- Courtyards
- Balconies
- Covered outdoor building areas
- Commercial canopy lighting with occupancy-based control
Frequently Asked Questions
Is this a low profile LED canopy light?
Yes. The Deco DCPO-GEN2-MW90-W-SEN has a low profile round design with a 10 inch diameter and 3.2 inch height, making it a good fit for parking garages, covered walkways, canopies, and other ceiling-mounted commercial lighting applications.
Does this canopy light include a motion sensor?
Yes. This version is configured with the sensing function installed, allowing the fixture to support motion-based lighting control for areas such as parking garages, car ports, underpasses, and covered outdoor spaces.
What wattages can this fixture be set to?
This fixture is wattage selectable and can be set to 40W, 60W, or 90W depending on the lighting requirements of the space.
What color temperatures are available?
The fixture is CCT selectable and can be set to 3000K, 4000K, or 5000K, giving installers flexibility for warmer, neutral, or daylight-style lighting.
Is this fixture dimmable?
Yes. The Deco DCPO-GEN2-MW90-W supports 0-10V dimming for use with compatible dimming controls.
Where is this LED canopy light commonly used?
This fixture is designed for parking garages, car ports, driveways, underpasses, walkways, courtyards, balconies, and similar covered commercial or outdoor locations.
Is this canopy light suitable for wet locations?
The fixture is rated IP65 for water and rust proof protection, making it suitable for demanding covered outdoor and commercial environments.
What is the fixture made of?
The main body is made from die-cast aluminum, with a clear/opal anti-UV prismatic glass diffuser for efficiency and vandal resistance.
What warranty does this fixture have?
The fixture includes a 5 year warranty, with a 10 year warranty option listed by the manufacturer.
