Adjustable Current LED Power Supply | 120-277V | 0-10V Dimming | 700-2100mA Output

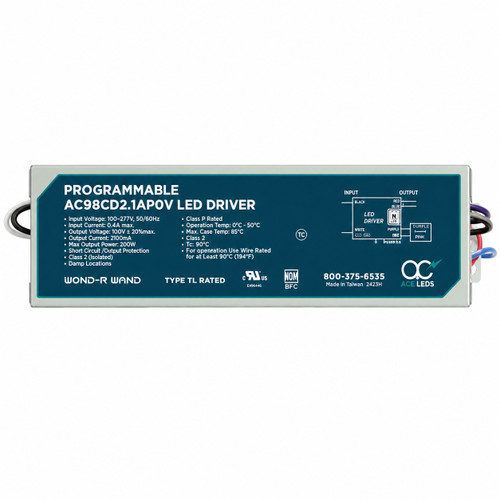

The AC Electronics AC98CD2.1APOV is a programmable constant current LED driver designed for commercial LED lighting applications requiring adjustable output current, wide input voltage compatibility, and 0-10V dimming control. This Class P listed driver supports NFC programming, dim-to-0% capability, and a 10-100% dimming range by NFC setting.
Product Specifications
- Brand: AC Electronics
- Model Number: AC98CD2.1APOV
- Product Type: Programmable Constant Current LED Driver
- Output Power: 98W
- Input Power: 113W
- Input Voltage: 120-277V
- Input Frequency: 50/60Hz
- Input Current: 0.94A at 120V, 0.41A at 277V
- Output Voltage: 27-47V
- Output Current: 700mA-2100mA
- Output Current Tolerance: 700mA +/-14%, 800mA +/-10%, 900mA +/-8%, 1050mA-2100mA +/-5%
- Dimming Protocol: 0-10V
- Dimming Range: 0-100%
- Power Factor: Greater than 0.90 at full load
- THD: Less than or equal to 20% at full load
- Efficiency: Up to 86%
- IP Rating: IP64
- Maximum Case Temperature: 90C
- Operating Temperature: 0C to 50C
- Minimum Starting Temperature: 10C
- Inrush Current: 35A
- Surge Protection: 2kV
- Sound Rating: Class A
- Approvals: UL Class 2, FCC Class A, RoHS, Type HL
- Safety and EMC: FCC Part 15 Class A, UL8750, CSA C22.2 No. 250.13-14
- Dimensions: 9.5 in. L x 2.4 in. W x 1.46 in. H
- Mounting Length: 8.9 in.
- Lead Lengths: Black 5.9 in., White 5.9 in., Blue 5.9 in., Red 5.9 in., Purple 7.1 in., Pink 7.1 in.
- Warranty: 5 years when operated at max case temperature below 75C; 3 years when operated up to 90C
Benefits
- Programmable output current allows one driver to support multiple LED fixture configurations.
- Wide 120-277V input voltage supports common commercial and industrial electrical systems.
- 0-10V dimming provides lighting control compatibility for energy-saving applications.
- Dim-to-0% capability allows the driver to support advanced control strategies when properly configured.
- Built-in overload, over-temperature, over-voltage, and short-circuit protection help improve system reliability.
- IP64 rating provides added protection for enclosed fixture and electrical enclosure applications.
Applications
- Commercial LED fixtures
- LED retrofit projects
- Indoor electrical enclosure installations
- Programmable lighting systems
- 0-10V dimming LED lighting applications
- Replacement constant current LED driver installations
Installation Notes
- Maximum remote installation distance is 18 ft.
- LED driver case should be grounded.
- Driver should be installed inside an electrical enclosure.
- 18 AWG 600V/105C tinned stranded copper lead wires are required for installation.
- The gray dimming wire has been changed to pink per 2020 NEC section 410.69 and NEMA guidance.
Custom Fields
- Current Type: Programmable
- Driver Type: Constant Current
- Dimming Type: 0-10V
- Min Output Current: 700mA
- Max Output Current: 2100mA
- Min Output Voltage: 27V
- Max Output Voltage: 47V
- Min Input Voltage: 120V
- Max Input Voltage: 277V
- IP Rating: IP64
- Size: 9.5x2.4x1.46 inches
- Power Factor: >0.90
- Dimmable: Yes
- Warranty: 5 Years TC less than 75C; 3 Years TC 75C to 90C
