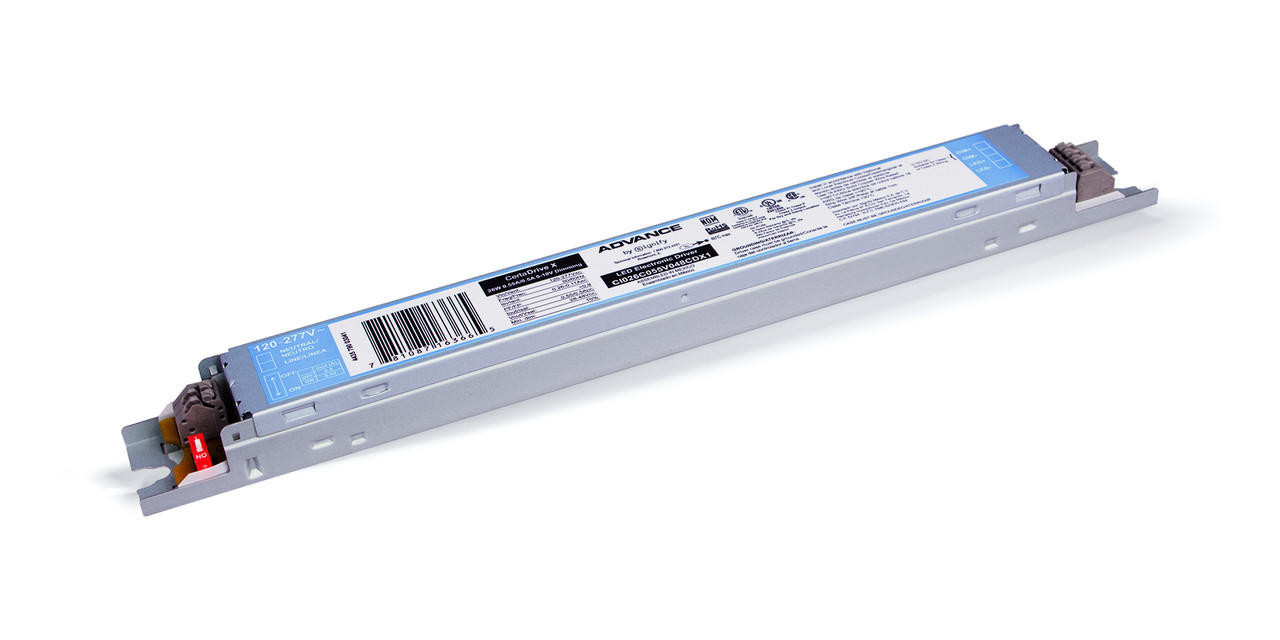

Advance CI049C102V048CDX1M 48W LED Driver

SKU:
PL-1791913
Minimum Order Quantity:
18 units
To help ensure safe arrival this product and to give you the lowest possible price, this item is only sold in case quantities.  Price shown is per driver. View full description
$22.21
Customer Reviews
Pack
18

Description

Replacement 48W CertaDrive X LED Driver | 950/1025 mA | 120-277V

Advance CertaDrive X LED drivers are designed to meet basic lighting needs. These drivers are offered with specific voltage-current settings and are, thus, optimized with specifications that are appropriately suited for the application, making LED conversion affordable.

Features

  • 50,000+ hour lifetime1
  • Excellent thermal performance
  • High power factor & low THD2

Benefits

  • Enables long life luminaire designs
  • Allows operability in indoor (low-bay) ambient conditions
  • Suitable for commercial indoor applications

Application

  • Indoor linear troffers, pendants
  • Office areas
  • Retail centers
  • Educational facilities

Disclaimers

*This product typically ships in 7 to 10 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will be longer than 10 business days to ship. Due to the speciality nature of this product, all sales are final.

Non-Returnable Item Notice:

Due to the sensitive electronic nature of LED drivers and the risk of improper installation, tampering, or programming, this item is non-returnable. Please confirm compatibility before purchasing. If your LED driver is defective upon arrival or during the warranty period, it may be eligible for a manufacturer warranty replacement. For assistance selecting the correct driver, please contact our support team.

Extra Information

Brand:
Advance by Signify
UPC:
929001791913
Order Number:
CI049C102V048CDX1M
Input Voltage (Vac):
120-277
Output Power (W):
49 Watt
Output Voltage (V):
28-48 Class 2 Output
Output Current (A):
0.95/ 1.025A
Efficiency@ Max Load and 75°C Case:
86 / 88
Max Case Temp. (°C):
Tc-life: 70°C / Tc-UL: 80°C
Input Current (A):
0.48 / 0.21
Max. Input Power (W):
55.8
THD @ Max Load (%):
Power Factor:
>0.90
Surge Protection (Ring Wave, KV):
2.5
Envir. Protect. Rating:
UL damp & dry
Dimming Type:
0-10V
Dimming Range:
10% ~ 100%
Current Type:
Fixed
Min Output Current:
950mA
Max Output Current:
1025mA
Min Output Voltage:
28V
Max Output Voltage:
48V
Min Input Voltage:
120V
Driver Type:
Constant Current
Max Input Voltage:
277V
Dimmable:
Yes
Pack:
18
