Description
Replacement Battery Back Up LED T5 Linear Lamp - 48" - 22W - On/Off Applications - 35K / 40K / 50K - 2900 Lumens - 120-277V

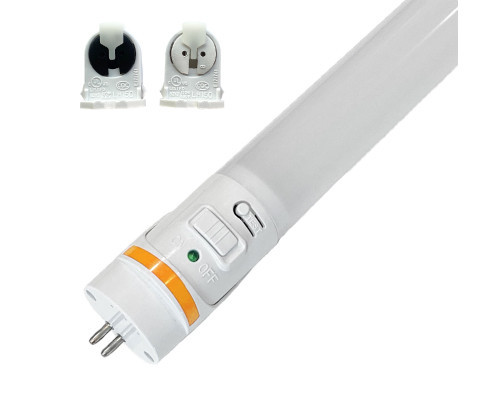

The Aleddra LLT-4-EM-T5-G2PRO-22W-3CCT is a 4ft replacement T5 linear LED tube with an integrated emergency battery that operates as normal lighting and provides automatic emergency illumination during power outages.
Key Features
- 2-in-1 operation: Regular T5 lighting and emergency lighting in one tube.
- Patented locking lampholders: Secures the tube in place and meets UL924 safety requirements.
- Built-in lithium batteries: Provides onboard emergency power.
- Wall switch controllable: Designed for on/off operation via wall switch.
- Manual testing: Manual test button for 30-second and 90-minute tests.
- 3CCT select switch: Choose from 3500K, 4000K, or 5000K.
- 5-year warranty: Manufacturer warranty as stated.
Emergency Lighting Specifications
- Emergency runtime: 90 minutes
- Emergency light output: 420 lm
- Emergency power: 4W
- Battery type: Built-in lithium batteries
- Automatic transfer: Automatic activation of battery backup during a power outage
Standard Lighting Specifications
- Lamp type: LED T5 linear tube
- Nominal length: 4ft (approx. 45.2"–45.7" overall dimensions listed)
- Wattage: 22W
- Input voltage: 120-277V
- Light output: 2900 lm
- Color temperature: 3500K, 4000K, 5000K (3CCT)
- CRI: >80
- Power factor: >0.9
- Luminous efficacy: >130 lm/W
- Operating temperature: 14°F ~ 104°F
- Rated life: 50,000 hours
- Warranty: 5-year
Wiring & Installation Notes
- Ballast compatibility: Existing ballasts must be removed or bypassed; not for use with standard/emergency ballasts.
- Endcap wiring: Red-labeled endcap wired to a constant-on circuit for battery charging; white endcap wired to a switched circuit for lamp on/off.
- Socket wiring: Two single-end wired sockets—one endcap to emergency power line and the other to the wall switch for switch-controlled operation.
Common Applications
- On/Off Applications: Areas requiring switch-controlled normal and emergency lighting.
Compliance & Notes
- Certifications: UL924 Certified; ETL Certified
- UL924: UL924 certified emergency tube with locking lampholders and 90-minute runtime
Why Choose Aleddra LLT-4-EM-T5-G2PRO-22W-3CCT?
The LLT-4-EM-T5-G2PRO-22W-3CCT combines normal 22W, 2900 lm T5 performance with a built-in UL924 emergency battery delivering 90 minutes at 420 lm. Its patented locking lampholders enhance safety, the 3CCT switch provides color flexibility, and a 5-year warranty supports long-term reliability.
Downloads
Disclaimers
*This product typically ships in 3 to 5 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship.
