Description

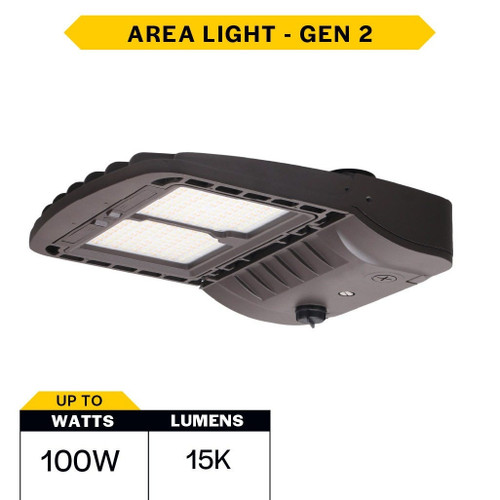

SAL2-1-LS-CS-T35X-U-BZ Versatile Outdoor Area Luminaire | CCT Selectable With Field-Interchangeable TIR Optics For Parking, Street, And Campus Lighting
The SekTor Area Light G2 is built for fast, low‑maintenance site lighting upgrades—delivering selectable lumen and CCT options plus tool‑less field serviceability to reduce downtime and simplify inventory for parking, roadway, and campus installations.
KEY FEATURES:
- Field Serviceable: Patented tool‑less entry door allows lens and LED board replacement without tools for faster maintenance.
- Selectable Output & Tone: Wattage selectable (60W/80W/100W) and CCT selectable (3000K/4000K/5000K) to match site requirements.
- Interchangeable Optics: Precision TIR optics with Type 3 installed and Type 5 included for flexible light distributions.
- Controls Ready: Built‑in Zhaga Z10 receptacle and 3‑pin receptacle for plug‑and‑play sensors or photocell options.
- Durable Outdoor Design: Die‑cast aluminum housing with powder‑coated bronze finish, IP65 wet‑location rating, and included 10kVA surge protection.
- Dimming: 0‑10V dimmable for energy management and lumen control.
APPLICATIONS:
- Ideal for parking lots, retail centers, and large outdoor site illumination.
- Perfect for streets, perimeter, and security lighting applications.
- Well suited for campuses, parks, and auto dealership sites requiring adaptable distributions.
- Installation Tip: Use the Zhaga Z10 receptacle for plug‑and‑play sensors to enable daylighting and occupancy control.
SPECIFICATIONS:
- Wattage: Selectable 60W, 80W, 100W
- Lumens: Selectable 9,400 / 12,000 / 15,000
- Color Temperature: CCT Selectable (3000K, 4000K, 5000K)
- CRI: 80
- Voltage: 120-277VAC
- Dimmable: Yes (0-10V)
- Average Life: 100,000 hours
- Finish: Powder‑Coated Bronze
- Lens: Precision Polycarbonate TIR Optics (Type 3 installed, Type 5 included)
- Surge Protection: 10kVA Included
- IP Rating: IP65 (Wet Location)
- Certifications: DLC 5.1 Premium; UL Listed; RoHS
- Warranty: 5 years
- Mount Included: No (Mounts sold separately as accessories)
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Listed
- Location Rating: Suitable For Wet Locations (IP65)
- Controls: Zhaga Z10 Receptacle For Bluetooth Or Standalone Sensor/Node Integration
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. This item ships directly from the factory.
