Description

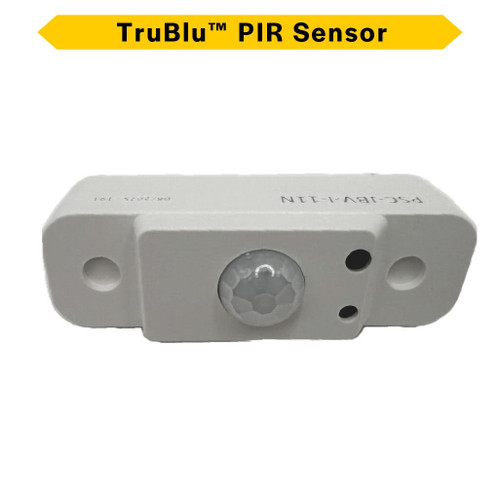

PSC-JBV-I-11N-BLE-SR Bluetooth TruBlu PIR Fixture Controller | Wireless 0-10V Dimming For Panels, Troffers, And Strips
Purpose-built for control-ready panels, troffers, and linear fixtures, the Halco TruBlu 25421 replaces manual switching with wireless occupancy sensing and integrated daylighting to reduce energy use and simplify zoning via Bluetooth mesh. Compact form and a 3.5mm audio-jack mount make installation fast while the web portal and iOS app allow remote configuration and grouping for multi-fixture control.
KEY FEATURES:
- Wireless Control: Bluetooth TruBlu mesh enables reliable, low-latency communication and fixture zoning.
- Integrated Sensing: PIR motion detection plus integral photosensor provides occupancy-based dimming and daylight harvesting.
- 0-10V Dimming: Single-channel low-voltage dimming control for smooth dimming with compatible drivers.
- Easy Mount: 3.5mm audio-jack base fits Halco control-ready panels and troffers for tool-free installation.
- Robust Operation: Configurable via mwConnect TruBlu web portal or iOS app for scene and scheduling setup.
APPLICATIONS:
- Ideal for retrofit or new-build commercial panels and troffers.
- Well suited to industrial facilities and large retail spaces needing centralized control.
- Good choice for offices and education spaces requiring occupancy sensing and daylighting.
- Usage Tip: Mount in a control-ready fixture using the 3.5mm audio jack and configure grouping through the mwConnect TruBlu portal or iOS app.
SPECIFICATIONS:
- Product Code: PSC-JBV-I-11N-BLE-SR
- Voltage: 12-24VDC
- Control: Bluetooth Mesh, Single-Channel 0-10V Dimming
- Mount Options: 3.5mm Audio Jack
- Detection Range: 6 ft Diameter
- Mount Height: Up To 15 ft
- Wireless Range: Up To 100 ft
- Operating Temperature: -20°C To 40°C
- Warranty: 5 Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: Bluetooth NLC Certified, UL Listed, FCC, CE, DLC Listed
- Market: Commercial, Industrial - For Indoor Fixtures (Panels, Troffers, Strips)
