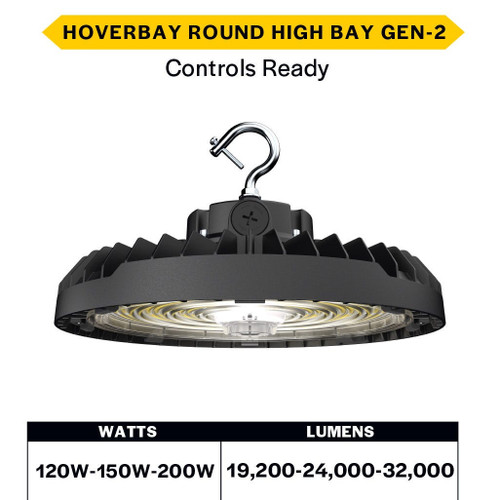

HRHB-3-LS-CS-U-BL Commercial High Bay With Field-Selectable Lumens And Color Temps | Adjustable Beam Angles For Warehouses
Built for warehouses, distribution centers, and gymnasiums, the HoverBay Round Highbay delivers flexible, serviceable illumination with field-selectable lumen outputs and color temperatures to match varied task areas while simplifying maintenance and installation.
KEY FEATURES:
- Field-Selectable Output: Choose from 19,200, 24,000, or 32,000 lumens to tailor light levels to your space.
- Wattage & Dimming: Selectable 120W, 150W or 200W operation with 0-10V dimming for energy and light-level control.
- Optical Flexibility: Three beam angles (60°, 90°-110°) let you optimize distribution for aisles, high racks, or open areas.
- Serviceable Design: Tool-less access with swappable LED board and driver for fast on-site repairs and reduced downtime.
- Rugged Construction: Die-cast aluminum housing, polycarbonate lens, and IP65 wet-location rating for durable performance in harsh environments.
- Control Ready: Built-in 3.5mm receptacle for standalone or Bluetooth sensors; TruBlu gateways and network options available.
- Included Accessories: Safety cable and hook included for immediate installation.
- Long Lifespan & Warranty: Rated for long life with a 5-year warranty and DLC 6.0 Premium qualification.
APPLICATIONS:
- Ideal for warehouses and pallet racking installations.
- Well suited to distribution centers and big-box retail interiors.
- Excellent for gymnasiums, manufacturing floors, and large indoor arenas.
- Usage Tip: Use narrower beam settings for high-aisle racks and wider beams for open-floor layouts to minimize fixtures while maintaining uniformity.
SPECIFICATIONS:
- Wattage: Selectable 120W, 150W, 200W
- Lumens: 19,200 / 24,000 / 32,000
- Color Temperature: Selectable 3500K, 4000K, 5000K
- CRI: 80
- Dimmable: Yes (0-10V)
- Voltage: 120-277VAC
- Average Life: 100000 hours
- Beam Angle: Selectable 60°, 90°-110°
- IP Rating / Environment: IP65, Wet Location Rated
- Housing: Die-cast Aluminum with Polycarbonate Lens
- Mount: Hook included (pendant, yoke, chain, J-box options sold separately)
- Included Accessory: Safety Cable & Hook
- Weight: 3.7 lbs
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 6.0 Premium, UL Listed, FCC, RoHS
- Power Factor: 0.9
- Operating Temp: -40C to 55C
