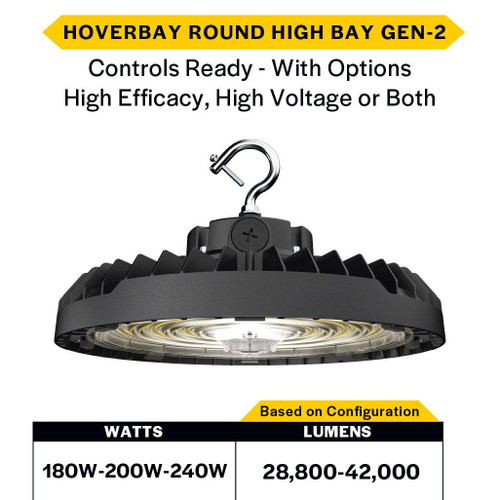

HRHB-4-LS-CS-U-HE-BL High-Output Round High Bay Fixture | CCT Selectable Solution For Warehouses, Distribution Centers, And Gymnasiums
Designed for large indoor industrial spaces, the HoverBay Round Highbay simplifies high-bay installations while delivering flexible light levels and long service life. Field-selectable lumen, wattage, CCT, and beam-angle options reduce SKUs and let designers tailor illumination for racking aisles, open floor areas, or sports facilities, while tool-less access and a swappable driver/LED board cut maintenance time.
KEY FEATURES:
- Field-Selectable Lumen Output: 31,500 / 35,000 / 42,000 lm options for tailored illumination.
- Wattage Selectable: 180W, 200W, or 240W configurations to match application needs.
- CCT Selectable: 3500K, 4000K, or 5000K for appropriate color rendition by space.
- Adjustable Optics: Choice of 60° (narrow), 90° (standard), or 100°+ (wide) beam distributions.
- Serviceable Design: Tool-less access with swappable LED board and driver for fast onsite maintenance.
- Robust Construction: Die-cast aluminum housing with polycarbonate lens and included hook and safety cable.
- Control Ready: 0-10V dimming and onboard receptacle for TruBlu/Bluetooth or other control solutions.
- Rugged Performance: IP65 Wet Location rating and 6kV surge protection for harsh environments.
APPLICATIONS:
- Warehouses - ideal for high-bay racking and general storage aisles.
- Distribution Centers - powerful, tunable output for sorting and packing areas.
- Gymnasiums and Large Indoor Recreation Spaces - even, high-output illumination.
- Usage Tip: Use the 60° narrow beam for long, high racking aisles to increase vertical shelf illumination.
SPECIFICATIONS:
- Wattage: Selectable 180W, 200W, 240W
- Lumen Output: 31,500 lm / 35,000 lm / 42,000 lm
- Color Temperature: Selectable 3500K, 4000K, 5000K
- CRI: 80
- Dimmable: Yes (0-10V)
- Beam Angle: Selectable 60°, 90° to 110°
- Average Life: 100,000 hours
- Power Factor: 0.9
- Operating Temperature: -40°C to 55°C
- IP Rating: IP65 (Wet Location)
- Housing Material: Die-cast Aluminum
- Mount Included: Hook included
- Included Accessory: Safety Cable & Hook
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 6.0 Premium, UL Listed, FCC, RoHS
- Location Rating: Wet Location Rated; IP65
- Surge Protection: 6KV
