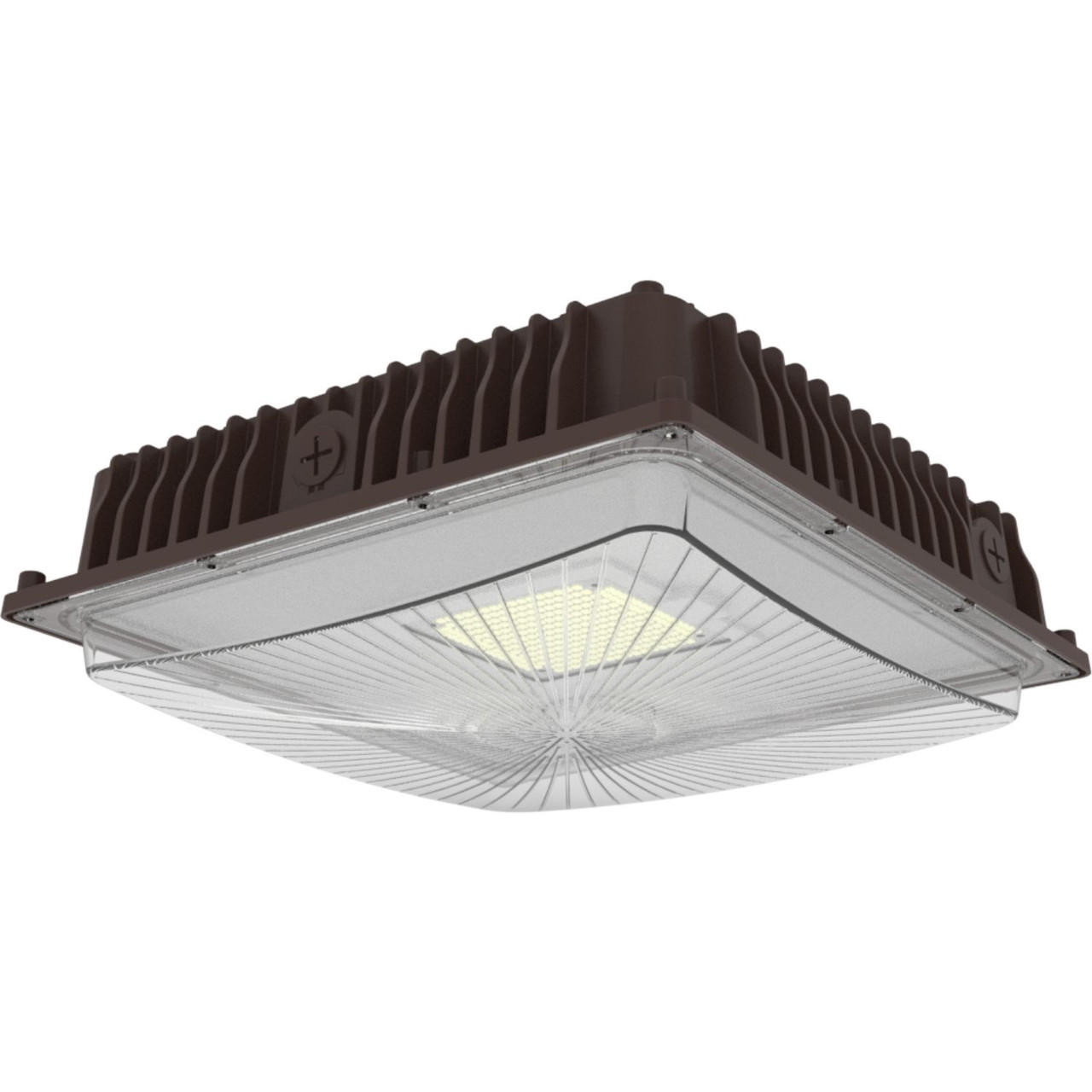

CSP-40-CS-U-BZ Low-Profile Outdoor Slim Canopy Fixture For Covered Areas | CCT Selectable | Wet-Location Rated With High Efficacy
Engineered for quick retrofits and new installs in covered outdoor spaces, the Halco ProLED Select 40W canopy delivers selectable color temperature and high lumen output to reduce energy use and maintenance while improving visual comfort under canopies and in garages.
KEY FEATURES:
- Field Adjustable CCT: Select 3000K, 4000K or 5000K on-site to match existing lighting or project requirements.
- High Efficacy Performance: Delivers 5,000–5,400 lumens with up to 135 LPW for reduced energy consumption compared to HID fixtures.
- Durable Outdoor Construction: Die-cast aluminum housing with polycarbonate lens for wet-location durability and long service life.
- Contractor Friendly: Quick-install mounting plate and universal voltage for fast retrofit or new construction installs.
- Integrated Protection & Control: Built-in 4kV surge protection and standard 0-10V dimming for enhanced reliability and control.
APPLICATIONS:
- Exterior canopies
- Parking garages
- Carports
- Tip: Ideal for covered outdoor mounting and fast retrofit installations to replace HID canopies.
SPECIFICATIONS:
- Wattage: 40W
- Lumens: 5,000 (3000K) / 5,400 (4000K) / 5,200 (5000K)
- Efficacy: 125 LPW (3000K) / 135 LPW (4000K) / 130 LPW (5000K)
- Color Temperature: CCT Selectable (3000K-4000K-5000K)
- CRI: >70
- Voltage: Universal 120-347VAC
- Dimming: 0-10V DC
- Surge Protection: 4kV
- L70 Lifetime: >100,000 Hours @ 25°C
- Amperage: 120VAC (.33A) / 277VAC (.15A)
- Power Factor: >.90
- Weight: 5.17 lbs
- Finish: Bronze
- Housing: Die-cast aluminum with powder coat finish
- Lens: Polycarbonate
- Operating Temperature: -40°C to 55°C
- Warranty: 5 Years Standard
CERTIFICATIONS & ADDITIONAL NOTES:
- Listings: cULus, DLC 5.1 Premium, FCC, RoHS
- Environment: UL Listed For Wet Location; IP65 Rated
