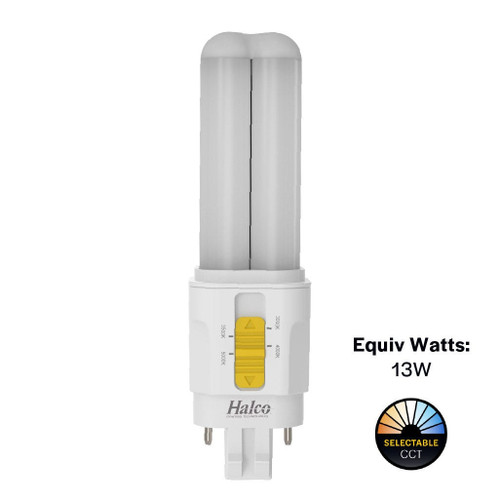

PLD5O-8CS-HYB-GX23-LED2 CCT Selectable GX23 Double-Tube Plug-In Lamp | Hybrid Type A/B Replacement For Commercial Fixtures
Designed to streamline commercial and institutional retrofits, the Halco 82846 ProLED Select plug-in lamp replaces 13W double-tube CFLs with a compact, energy-saving 5.5W LED that delivers omnidirectional light and selectable color temperatures. Its hybrid Type A/B compatibility reduces install time by supporting both magnetic-ballast operation and direct ballast-bypass wiring.
KEY FEATURES:
- Energy Efficient: Consumes 5.5W while replacing a 13W CFL to lower utility costs.
- Hybrid Compatibility: Type A (ballast-compatible) and Type B (ballast bypass) for flexible retrofit options.
- CCT Selectable: Four user-selectable tones (3000K, 3500K, 4000K, 5000K) to match fixture needs.
- Omnidirectional Output: 360° beam for even area illumination in troffers and ceiling fixtures.
- Long Life: Rated for 50,000 hours to reduce maintenance and lamp changes.
APPLICATIONS:
- Ideal for commercial ceiling grids, office troffers, and retail fixtures.
- Well-suited to healthcare, education, and hospitality environments requiring consistent, selectable color light.
- Useful in retrofit projects converting CFL plug-in sockets to LED without full fixture replacement.
- Installation Tip: Verify ballast compatibility or prepare for ballast bypass wiring when selecting Type B installation.
SPECIFICATIONS:
- Wattage: 5.5W
- Equivalent: 13W CFL
- Lumens: 720 / 750 / 800 / 800
- Color Temperature: Selectable 3000K, 3500K, 4000K, 5000K
- CRI: 80
- Base Type: GX23 (2-Pin)
- Voltage: 120-277V
- Amps: 0.045
- Input Frequency: 50/60Hz
- Beam Angle: 360° (Omnidirectional)
- Power Factor: 0.9
- Average Life: 50,000 hours
- Dimmable: No
- Operating Temp: -20°C to 45°C
- Warranty: 5 years
- Packaging: Sold Individually; Inner Pack: 6; Master Carton: 24
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Listed
- Environmental: RoHS Compliant; NSF Rated
- Location Rating: Suitable For Damp Locations (IP20)
