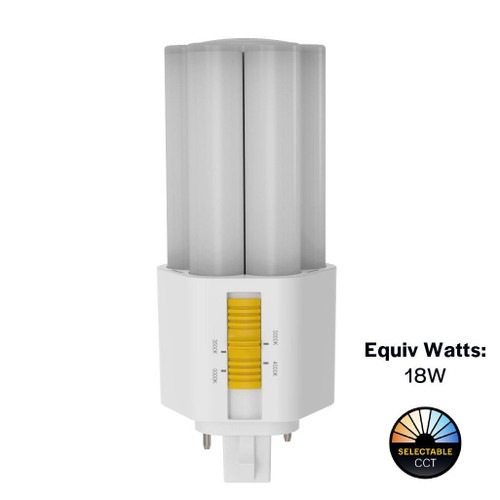

PLT7O-8CS-BYP-GX24D-LED2 Selectable 3000K-5000K Plug-In LED Lamp | Ballast Bypass Retrofit For Offices, Retail, And Hospitality
Designed to simplify CFL-to-LED retrofits, the Halco 82855 delivers omnidirectional LED light in a compact triple-tube form, allowing quick ballast-bypass installs while cutting energy use and maintenance for commercial spaces.
KEY FEATURES:
- Quick Retrofit: Type B ballast-bypass design enables straightforward direct-wire installation to eliminate failing ballasts.
- Flexible Color: Switchable 3000K-5000K selection tailors ambiance from warm to daylight for varied commercial settings.
- Low Maintenance: 50,000-hour rated life and a 5-year warranty reduce replacement frequency and lifecycle costs.
- Compact Omnidirectional Output: 360° beam spread provides uniform replacement light for fixtures designed for triple-tube CFLs.
APPLICATIONS:
- Ideal for office ceiling grids and recessed troffers where CFL plug-in lamps are being replaced.
- Well suited for retail displays, healthcare, and education facilities seeking consistent, low-glare illumination.
- Great for hospitality back-of-house, corridors, and utility areas needing reliable LED retrofit options.
- Installation Tip: Bypass the existing ballast per instructions and verify proper double-ended or single-ended wiring for Type B installs.
SPECIFICATIONS:
- Wattage: 7W
- Equivalent Watts: 18W
- Lumens: 860 / 900 / 960 / 960
- Color Temperature: Selectable 3000K, 3500K, 4000K, 5000K
- CRI: 80
- Voltage: 120-277V
- Base Type: GX24D
- Bulb Type: PLT Triple Tube
- Beam Angle: 360 Degrees (Omnidirectional)
- Average Life: 50,000 hours
- Dimmable: No
- Input Frequency: 50/60Hz
- Power Factor: 0.9
- Operating Temp: -20C to 45C (-4F to 113F)
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Listed; RoHS; NSF Rated; FCC
- Environment: Damp Location, IP20
- Packaging: Inner Pack 6, Master Pack 24
