Description

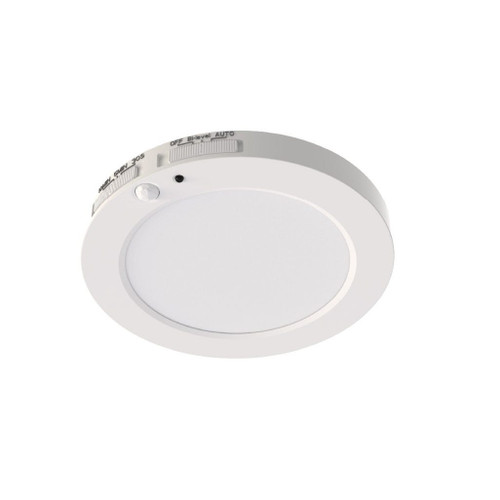

DSK-5.5-CS-120V-PIR Low-Profile 5.5-Inch Ceiling Disc | CCT Selectable Edge-Lit LED With PIR Occupancy And Daylight Sensor
Upgrade low‑ceilings and common areas with a slim, edge‑lit LED disk that reduces maintenance and delivers selectable color tones while automatically managing occupancy using the integrated PIR and daylight sensor.
KEY FEATURES:
- Slim Architectural Design: Low profile 5.5" round edge‑lit disk for a clean, glare‑controlled ceiling appearance.
- Color Selectable: Choose from 2700K, 3000K, 3500K, 4000K or 5000K to match space ambiance and reduce SKU complexity.
- Integrated PIR With Daylight Sensor: Built‑in occupancy and daylight sensing with hold times of 30 sec, 5 min, and 10 min for automated energy savings.
- Reliable Performance: 10W fixture producing 820 lumens with a CRI of 90 and a 50,000‑hour average life.
- Easy Install: Includes mounting bracket and screws for J‑box attachment; fits standard ceiling mount applications.
APPLICATIONS:
- Ideal for residential entryways and hallways where low profile, high quality light is desired.
- Well suited for office buildings and schools to reduce maintenance and improve occupant comfort.
- Works in corridors, storage areas, and multi‑family common spaces requiring automated occupancy control.
- Usage Tip: Use the selectable CCT to match adjacent fixtures and enable PIR daylighting to maximize energy savings.
SPECIFICATIONS:
- Wattage: 10W
- Lumens: 820
- Color Temperature: Selectable 2700K, 3000K, 3500K, 4000K, 5000K
- CRI: 90
- Voltage: 120V
- Size: 5.5in
- Shape: Round
- Dimmable: No
- Included Accessory: PIR with Daylight Sensor (Hold Times: 30 Sec / 5 Min / 10 Min)
- Average Life: 50,000 hours
- Power Factor: 0.9
- Finish: White Trim with PMMA Lens
- Housing: Plastic Frame with Steel Bracket
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: UL Listed, Energy Star Certified, CA Title 24 compliant, RoHS
- Location Rating: Damp Location Rated
- Warranty: 5-year limited warranty
