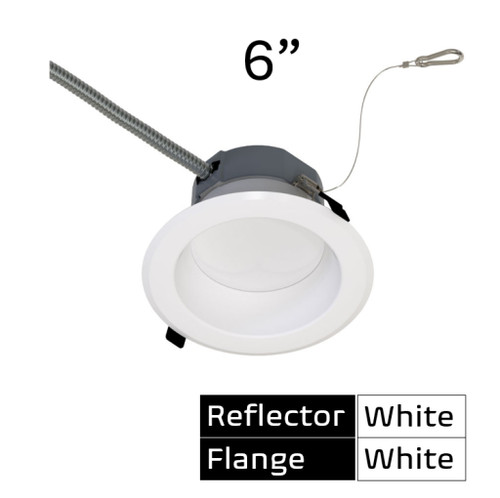

CDL-6-LS-CS-WH-DDV Commercial 6in Downlight | Selectable Output & Color, Dual Dimming For Retrofit
Specifically designed for fast commercial retrofits, this 6" downlight delivers flexible lumen and color selections plus dual-dimming compatibility to simplify upgrades and reduce maintenance in offices, retail, and educational facilities.
KEY FEATURES:
- Selectable Output & Color: Choose from multiple lumen levels and five color temperatures to tailor lighting after installation.
- Dual Dimming Compatibility: Integrated driver supports both TRIAC/ELV phase-cut and 0-10V dimming for broad control system compatibility.
- Wet-Rated Durability: IP65-rated housing and Energy Star certification enable safe use in damp or exposed environments.
- Easy Retrofit Installation: Mouse-trap steel spring clips and can-or-canless mounting speed installation in existing ceilings.
- High-Quality Light: 90 CRI and wide 80° beam spread provide accurate color rendition and comfortable illumination.
APPLICATIONS:
- Ideal for office parks and commercial ceiling grids seeking low-maintenance LED upgrades.
- Well suited for big-box retail environments where flexible output and color optimize merchandising.
- Appropriate for K-8 schools and higher-education facilities requiring long-life, high-CRI lighting.
- Installation Tip: Select lumen and CCT after mounting to fine-tune visual comfort and energy use for the space.
SPECIFICATIONS:
- Wattage: 10W, 17W or 21W
- Lumens: Selectable 1000, 1800, 2500
- Color Temperature: Selectable 2700K, 3000K, 3500K, 4000K, 5000K
- CRI: 90
- Average Life: 50,000 hours
- Beam Angle: 80° ± 10°
- Voltage: 120-277V
- Size: 6in
- Dimmable: Yes (Triac/ELV or 0-10V)
- IP Rating: IP65 (Wet Location)
- Mount: Mouse Trap Steel Spring Clips; Can or Canless Installation
- Finish: White Reflector with White Flange
- Lens: Diffused, Textured Polycarbonate
- Housing: Powder Coated Steel Reflector
- Warranty: 5-year limited warranty
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: ETL Listed, Energy Star, FCC, Title 24, RoHS
- Environment: Suitable For Wet Locations
- Power Factor: 0.9
