Description

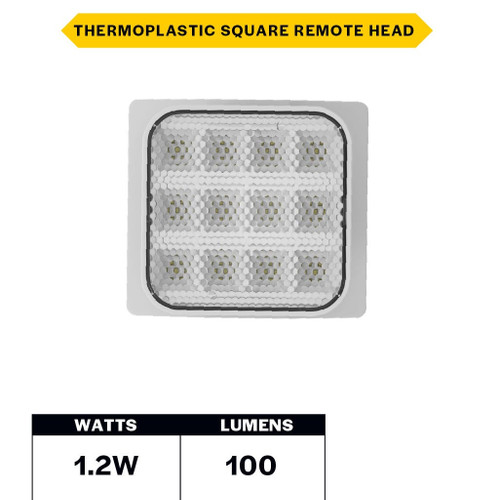

EMG-RH-1-IND-SQ-WH Adjustable Emergency Remote Head For Indoor Life Safety And Egress Lighting | 100lm, 3.6-15VDC
Purpose-built for exit and emergency lighting upgrades, this compact remote head delivers reliable, focused illumination with an adjustable swivel design to optimize center-to-center spacing along egress paths. Its low 1.2W consumption and included mounting canopy simplify installation in commercial and institutional settings.
KEY FEATURES:
- Adjustable Aim: 360° rotation and 180° vertical adjustment for precise beam placement in corridors, stairwells, and exits.
- Low Power Draw: 1.2W LED output provides 100 lumens while minimizing battery load on emergency systems.
- Simple Installation: Includes mounting canopy and hardware for wall or ceiling mounting to a standard 4" junction box.
- Damp Location Rated: Suitable for damp or dry indoor environments common to commercial egress applications.
- Durable Construction: White thermoplastic housing resists wear while remaining lightweight for easy mounting.
APPLICATIONS:
- Ideal for exit signage, stairwells, and corridor egress illumination in commercial buildings.
- Well suited to schools, warehouses, and retail spaces requiring reliable emergency lighting.
- Commonly used with remote capacity exits, combo units, and EM units to add directional lighting.
- Installation Tip: Aim heads during commissioning to ensure even center-to-center spacing along evacuation routes.
SPECIFICATIONS:
- Manufacturer: Halco
- UPC: 807154980536
- Wattage: 1.2W
- Lumens: 100 lm
- Voltage: 3.6-15VDC
- Dimmable: No
- Light Style: Square
- Mount Included: Yes (canopy and hardware)
- Mount Options: Wall or ceiling to standard 4" J-box
- Finish: White
- Housing Material: Thermoplastic
- Warranty: 5 years
- Operating Temp: 0°C (32°F) to 40°C (104°F)
- Sold In Multiples Of: 1
- Master Carton Size: 12
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: UL 924 Damp Location Listed - NFPA 101 - NFPA 70 - CEC T20
- Other Listings: UL Listed, RoHS, Title 20 compliant
