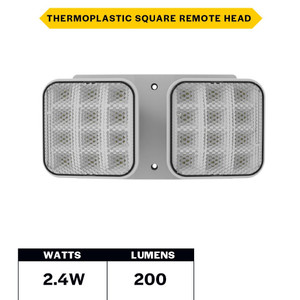

EMG-RH-2-OUT-SQ-BK Outdoor Emergency Remote Heads | Wet-Location Adjustable Dual LED Fixture For Exits And Pathway Lighting
Designed to provide dependable outdoor emergency illumination, the Halco 98066 pairs two adjustable square LED heads with a compact canopy for quick installation on standard 4" J-boxes. It delivers focused 200 lumens from low-power LEDs and simplifies maintenance for life-safety applications.
KEY FEATURES:
- Adjustable Illumination: Dual heads rotate 360° horizontal and 180° vertical for precise aiming along egress paths.
- Low Power: Operates from 3.6-15VDC at a maximum of 2.4W while producing 200 lumens.
- Weather-Ready: Listed for wet locations and built in thermoplastic housing with black finish.
- Easy Mounting: Includes mounting canopy and hardware for wall or ceiling installation to standard 4" J-box.
- Maintenance-Friendly: Lightweight 0.83 lb unit with a 5-year warranty for long service life.
- Non-Dimmable: Designed for emergency operation (dimming not supported).
APPLICATIONS:
- Outdoor emergency exits, canopies, and perimeter pathway lighting.
- Commercial and educational building life-safety illumination.
- Garages, warehouses, and door entrances requiring wet-location fixtures.
- Tip: Aim heads to optimize center-to-center spacing along the path of egress.
SPECIFICATIONS:
- Wattage (Max): 2.4W
- Lumens: 200 lm
- Voltage: 3.6-15VDC
- Finish: Black
- Housing: Thermoplastic
- Mount Options: Wall or Ceiling (4" J-box)
- Weight: 0.83 lb
- Operating Temp: -20°C (-4°F) to 40°C (104°F)
- Dimmable: No
- Sold In Multiples: 1
- Master Carton Quantity: 12
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: UL 924 Wet Location Listed; NFPA 101; NFPA 70; CEC T21
- Title 20: Yes
- RoHS: Yes
- DLC Qualified: No
