Description
8W/15W Selectable | 3K/4K/5K Selectable | Up to 1500 Lumens | 120-277V | Emergency Backup in case of Power Failure

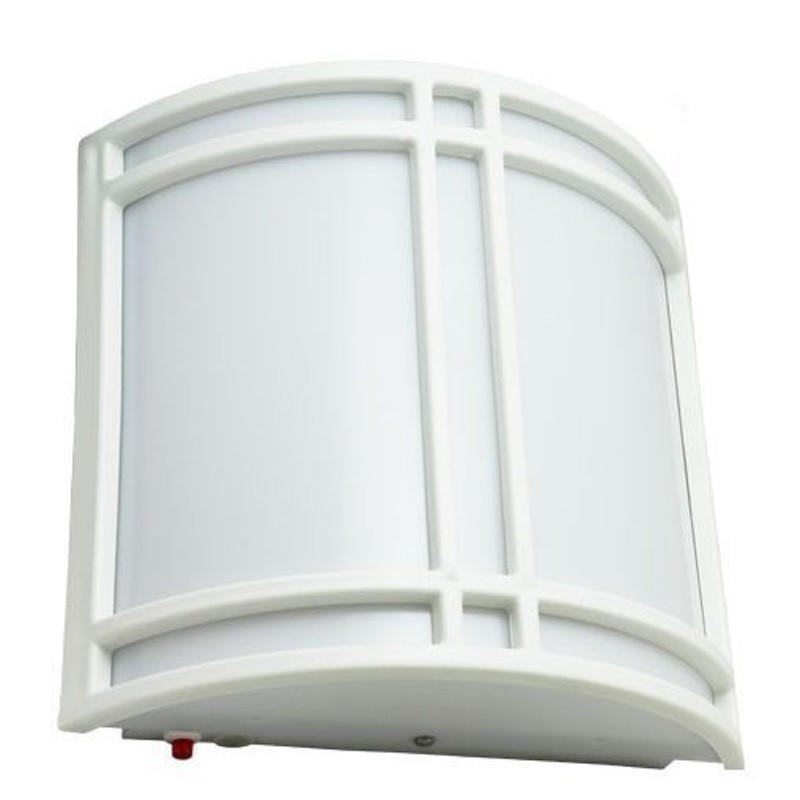

This white LED wall sconce with emergency driver combines a clean architectural design with field-selectable 8W or 15W operation, selectable 3000K, 4000K or 5000K color temperature and integrated emergency backup. At the 15W setting, the fixture delivers up to 1500 lumens. The white decorative frame surrounds a UV-stabilized white acrylic lens, while translucent top and bottom sections provide a subtle wall-wash effect. Designed for commercial, hospitality and multifamily applications, the fixture operates on 120-277V and is UL Listed for damp locations.
Product Specifications
- Product Type: Decorative LED wall sconce with emergency driver
- Finish: White
- Decorative Frame: Composite
- Back Pan: White aluminum
- Lens: White UV-stabilized acrylic
- Top and Bottom: Closed translucent acrylic design
- Light Source: Integrated LED
- Selectable Wattage: 8W or 15W
- Maximum Lumen Output: 1500 lumens at 15W
- Selectable CCT: 3000K, 4000K or 5000K
- CRI: 90
- Input Voltage: 120-277V
- Emergency Backup: Emergency LED driver included
- Fixture Width: 11.5 inches
- Fixture Height: 10.3 inches
- Fixture Projection: 3.75 inches
- Location Rating: UL Listed for damp locations
- Compliance: Buy American Act compliant
- Warranty: 5 years
Benefits
- Selectable 8W or 15W operation allows the fixture to be adjusted for different light-output requirements.
- Emergency LED driver provides backup illumination when normal power is interrupted.
- Selectable 3000K, 4000K and 5000K color temperatures allow jobsite adjustment during installation.
- Up to 1500 lumens at the 15W setting provides useful illumination for corridors, common areas and commercial interiors.
- 90 CRI provides accurate and natural-looking color rendering.
- UV-stabilized acrylic lens is designed for long-term use without premature discoloration.
- Composite decorative frame provides a clean architectural appearance.
- Translucent top and bottom sections create a subtle wall-wash effect.
- 120-277V operation supports common commercial branch voltages.
- Buy American Act compliance supports qualifying government and institutional projects.
Applications
- Hotels and hospitality properties
- Apartment and condominium buildings
- Multifamily housing
- Interior corridors and hallways
- Common areas
- Stair landings
- Assisted living facilities
- Commercial buildings
- Schools and institutional facilities
- Emergency egress lighting applications
Downloads
8W or 15W Selectable Output
The fixture can be set to either 8W or 15W during installation. The lower 8W setting is useful where reduced light output or lower connected load is preferred, while the 15W setting provides the highest available output of up to 1500 lumens.
This selectable design gives contractors flexibility to use one fixture across multiple room types and lighting requirements without ordering separate wattage-specific models.
3CCT Field Selectable
The fixture can be set to 3000K, 4000K or 5000K during installation. Choose 3000K for a warmer appearance, 4000K for a balanced commercial white or 5000K for a cooler daylight appearance.
Fixtures installed together in the same visible area should be set to the same color temperature before final commissioning.
Integrated Emergency Backup
This configuration includes an emergency LED driver to provide backup illumination when normal building power is lost. The emergency system is integrated with the fixture so the wall sconce can serve both as normal architectural lighting and as part of the emergency lighting system where approved by the project design.
Emergency lighting performance, fixture spacing and required illumination levels should be confirmed against the project plans and applicable life-safety requirements.
Decorative White Architectural Design
The curved white decorative frame and white acrylic lens provide a clean, neutral appearance suitable for hospitality, multifamily and commercial interiors. The design is decorative enough for visible public areas while remaining simple enough for large retrofit and new-construction projects.
Top and Bottom Wall Wash
The top and bottom of the fixture are enclosed with translucent white acrylic. This allows a portion of the light to wash softly across the wall in addition to the forward illumination from the main lens.
Compact Wall-Mounted Profile
The fixture measures 11.5 inches wide, 10.3 inches high and projects 3.75 inches from the wall. Its compact profile works well in corridors, stair landings, entry areas and other locations where a low-profile decorative wall fixture is preferred.
Before You Order
Confirm that the 11.5-inch width, 10.3-inch height and 3.75-inch projection fit the available wall area. Verify that the electrical supply is between 120V and 277V and determine whether the fixture should operate at 8W or 15W.
Select the desired 3000K, 4000K or 5000K color temperature during installation. The fixture is listed for damp locations and is intended for applications consistent with that rating.
The standard fixture is listed as ADA compliant, but the manufacturer specifically excludes configurations where options are added. Because this version includes an emergency driver, it should not be represented as ADA compliant.
What Is Included
The fixture includes the white composite decorative frame, white aluminum back pan, UV-stabilized white acrylic lens, integrated LED light engine, 8W/15W selectable wattage control, 3000K/4000K/5000K selectable CCT control, 120-277V LED driver and emergency LED driver.
Installation
Installation must be completed by a qualified electrician in accordance with the National Electrical Code and applicable local requirements. Disconnect normal and emergency power before installation or service.
Select the required wattage and color temperature, complete the line-voltage and emergency-driver connections according to the supplied wiring instructions, and test both normal and emergency operation before placing the fixture into service.
Disclaimers
This product is built to order typically ships in 3 to 5 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship.
