Description

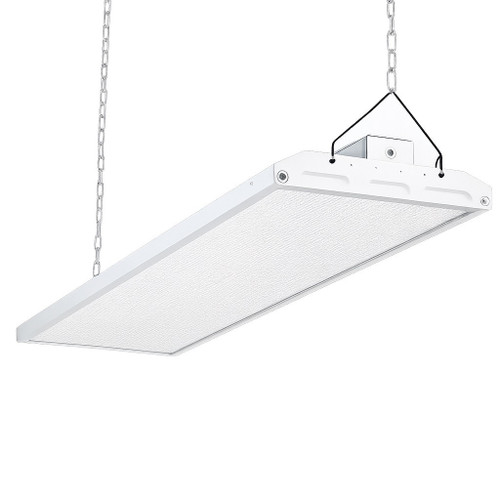

Selectable Wattage and CCT 3ft 175W, 200W or 225W Warehouse Light | 160 LM/W | 120-277V | 0-10V Dimmable | DLC Premium
This 3-foot LED linear high bay light delivers high-output commercial and industrial lighting with selectable 175W, 200W or 225W operation and up to 36,000 lumens. Three selectable color temperatures - 4000K, 5000K and 5700K - allow the fixture to be configured for the application during installation. With 160 lumens per watt efficacy, 0-10V dimming and 120-277V operation, this linear high bay is designed for warehouses, distribution centers, manufacturing facilities, gymnasiums and other large indoor spaces.
Included: Linear high bay fixture.
Sold separately: Motion sensor, 20W emergency battery, remote, surface-mount kit, and suspension-mounted kit. All are listed as order-separately accessories on the LHB10 sheet.
Product Specifications
- Product Type: LED linear high bay light
- Fixture Length: 3 feet
- Selectable Wattage: 175W, 200W or 225W
- Wattage Selection: Field-adjustable DIP switch
- Lumen Output: 28,000 to 36,000 lumens
- Luminous Efficacy: 160 lm/W
- Selectable CCT: 4000K, 5000K or 5700K
- Color Temperature Selection: Field-adjustable DIP switch
- CRI: Greater than 80
- Input Voltage: 120-277V AC
- Dimming: 0-10V
- Power Factor: Greater than 0.9
- Fixture Dimensions: 35.1 inches long x 12.5 inches wide x 2.9 inches high
- Operating Temperature: -4 F to 113 F
- Mounting: Chain suspension or pendant mounting
- Sensor Ready: Optional quick-install motion sensor available
- Emergency Backup: Optional emergency battery available
- Certification: DLC Premium
- Listing: cETL Listed
- Warranty: 5 years
- Included: Linear high bay fixture.
- Sold separately: Motion sensor, 20W emergency battery, remote, surface-mount kit, and suspension-mounted kit. All are listed as order-separately accessories on the LHB10 sheet.
Downloads
Benefits
- Selectable wattage and 4000K/5000K/5700K color at the published 160 lm/W efficacy.
- 120-277VAC operation with 0-10V dimming for warehouse and manufacturing high-bay use.
- Linear high-bay housing designed for chain or pendant installation as shown on the LHB10 sheet.
Applications
- Warehouses
- Distribution centers
- Manufacturing facilities
- Industrial buildings
- Gymnasiums
- Covered courts
- Supermarkets
- Airports
- Utility areas
- Large indoor open spaces
- Commercial storage facilities
FAQs
What ships with it?
Linear high bay fixture.
Which accessories fit?
Motion sensor, 20W emergency battery, remote, surface-mount kit, and suspension-mounted kit. All are listed as order-separately accessories on the LHB10 sheet.
What voltage does it need, and is it dimmable?
It runs on 120-277VAC and supports 0-10V dimming.
