Description

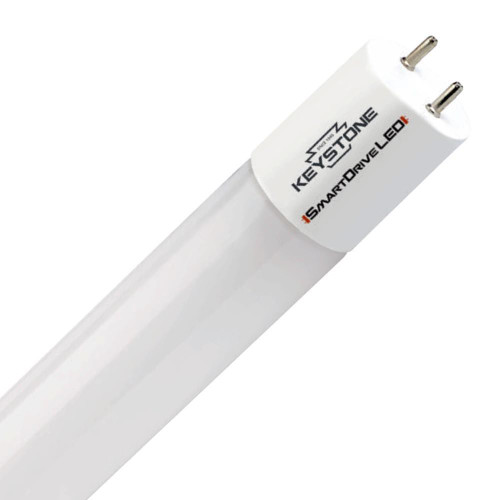

48" Replacement T8 LED Lamp | 13.5W | Type A Ballast Dependent | Soft White
The Keystone KT-LED13.5T8-48GC-830-S /G3 is a 13.5W Type A ballast-compatible T8 LED tube, designed for plug-and-play installation with existing instant-start and program-start electronic ballasts. This 4-foot LED replacement delivers 3000K soft white illumination, providing superior energy efficiency and a long-lasting alternative to F32T8 fluorescent tubes.
Key Features:
- Type A Plug & Play: Works with existing electronic T8 ballasts, no rewiring required
- Energy Efficient: 13.5W LED replaces F32T8/32W, F32T8/30W, F32T8/28W, and F32T8/25W fluorescent lamps
- Color Temperature: 3000K (Soft White)
- Luminous Output: 2,100 lumens (150 lm/W)
- Base Type: G13 (Medium Bi-Pin)
- Voltage Range: Ballast dependent
- Beam Angle: 210° for wide light distribution
- Dimmable: Compatible with dimmable ballasts
- Frosted Coated Glass: Eliminates glare and increases durability
- Long Lifespan: 50,000+ hours for reduced maintenance
- UL Listed & DLC Listed: Certified for energy efficiency and retrofit applications
Advantages:
- Plug & Play Installation: No ballast bypass required
- More Efficient than Fluorescent: Uses up to 60% less energy while providing the same light output
- Extended Lifespan: Lasts 5x longer than fluorescent tubes
- Shatterproof Coated Glass: Designed to pass 6' drop tests
- NSF Listed: Complies with NSF/ANSI Standard 2 for food zone and splash zone use
Ideal Applications:
- Office lighting
- Schools and universities
- Warehouses and industrial spaces
- Retail stores
- Hospitals and healthcare facilities
Technical Details:
- Model: KT-LED13.5T8-48GC-830-S /G3
- Base Type: G13 (Medium Bi-Pin)
- Wattage: 13.5W
- Color Temperature: 3000K (Soft White)
- Luminous Output: 2,100 lumens
- Voltage Range: Ballast Dependent
- CRI Rating: >80
- Beam Angle: 210°
- Dimming: Compatible with dimmable ballasts
- Lifespan: 50,000+ hours
- Certifications: UL Listed, DLC Listed, NSF Certified, FCC Compliant
- Operating Temperature: -20°C to 45°C (-4°F to 113°F)
- Nominal Length: 48 inches
