Keystone KT-LED15T8-48GC-850-D /G3

SKU:
KT-80071
$7.87
Sold by the Case of:
25 units
Typically ships in 2-3 business days* View full description
Customer Reviews
Pack
25

Description

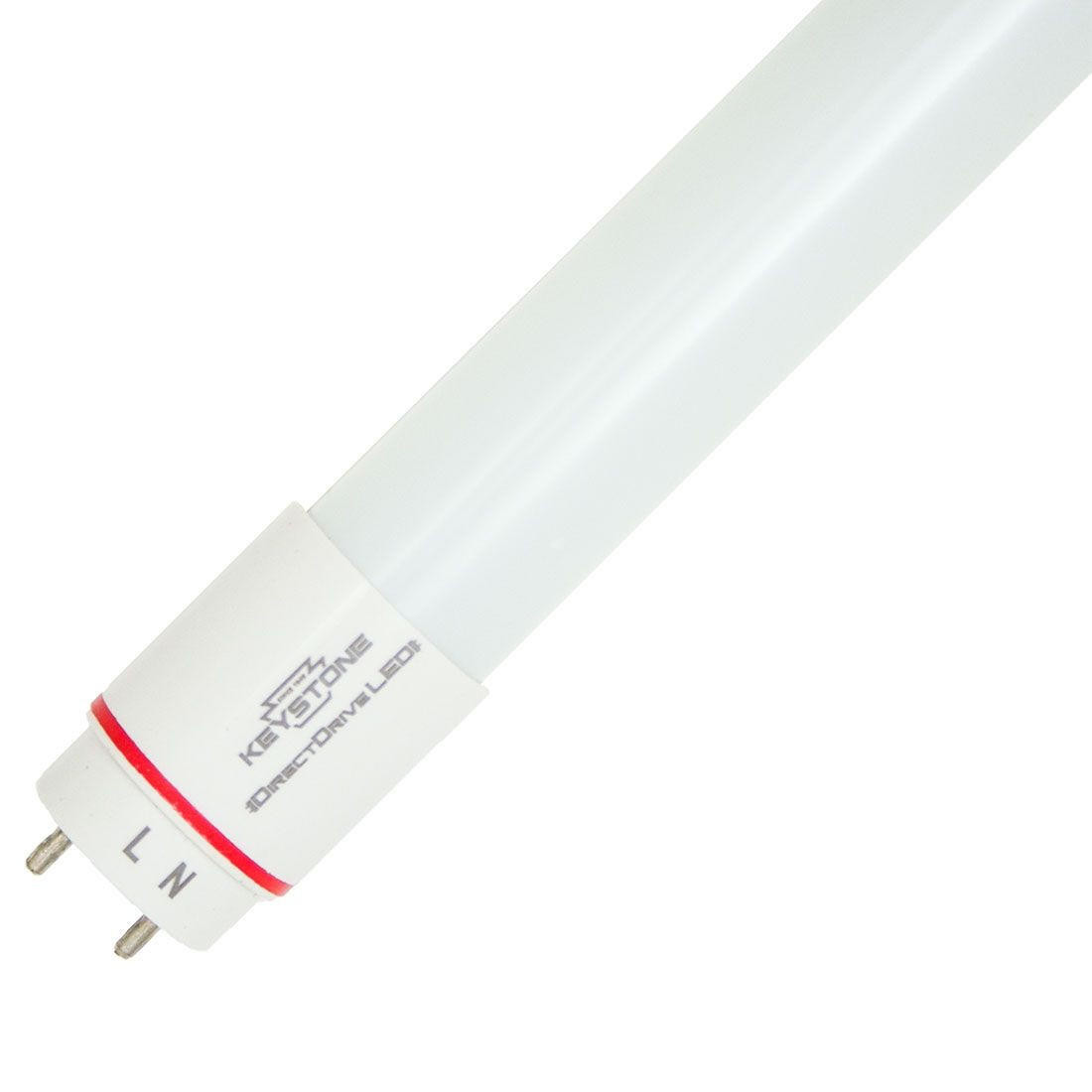

Direct Drive 48" T8 LED Tube | Type B Ballast Bypass | Single End Wired | 5000K

Upgrade your fluorescent fixtures with modern, energy-efficient LED lighting! This T8 Tube LED produces 1,930 Lumens of light with a high CRI of >83 and a cool white color temperature of 5000K. The frosted glass ensures even light with no LED "pixelation", and they are ETL Sanitation Listed for food equipment. Integral Driver (Isolated), eliminates the need for external driver or ballast (existing ballasts should be removed or bypassed when retrofitting fixtures; refer to wiring diagram on Specifications sheet).

Features

  • Replacement for Conventional F32T8 Fluorescent Lamp
  • 5000K Color Temperature
  • 50,000+ Hour Lifetime
  • Approximately 40% More Energy Efficient that Standard F32T8 Lamps
  • Environmentally Friendly: No Mercury Used
  • Instant Startup
  • Frosted Lens Eliminates Pixelation
  • UL Classified; Listed on DLC Qualified Product List
  • ETL Sanitation Listed NSF/ANSI Standard 2

Downloads


Caution

Use only non-shunted lamp-holders. Do not install product in a fixture with shunted lamp-holders (found in all fixtures using instant start ballasts). If the current lamp-holders are shunted, remove them and replace them with non-shunted lamp-holders. Make new connections directly to terminals as indicated above.

Disclaimers

*This product is built to order typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time.  All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. Keystone has multiple warehouse's around the country to help serve you better.


Extra Information

Brand:
Keystone Technologies
UPC:
890949013335
Catalog No:
KT-LED15T8-48GC-850-D/G3
Operation:
Type B | Ballast By-Pass
Light Source:
LED
Wattage:
15 Watt
Color Temperature:
5000K
Base:
Medium Bi-Pin (2-Pin) (G13)
CRI:
83
Life Hours (Avg):
50,000
Lumens:
1930
Safety Rating:
UL Listed
Dimmable:
No
DLC Listed:
Yes
Voltage:
120/277V
Pack:
25
Warranty:
5 Year
Size:
4 ft
Length (in.):
47.15
Diameter (in.):
1.10
