Description
175W HID Replacement - 3,915/5,220/6,525 lm - Type B Ballast Bypass - 120-277V

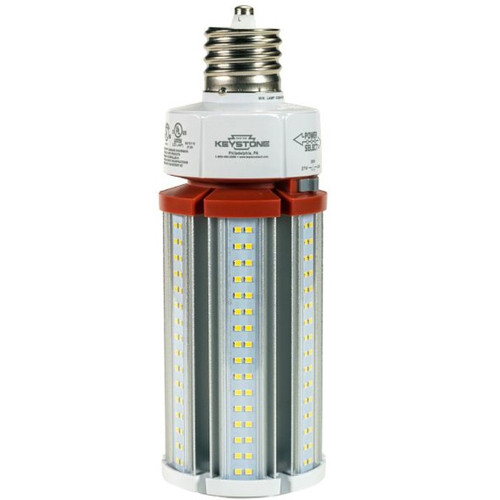

The Keystone KT-LED45PSHID-EX39-850-D /G4 is a wattage-selectable LED corn bulb rated to replace compatible 175W HID lamps from an EX39 Mogul Extended base. Browse our complete selection of high wattage light bulbs for additional options by wattage, lumen output, base and installation method.
Product Specifications
- Brand: Keystone Technologies
- Manufacturer Model: KT-LED45PSHID-EX39-850-D /G4
- Actual LED Wattage: Selectable 27W/36W/45W
- HID Replacement: 175W
- Lumen Output: Selectable 3,915/5,220/6,525 lm
- Color Temperature: 5000K
- Base: EX39 Mogul Extended
- Operation Type: Type B | Ballast Bypass (direct-wire line voltage)
- Voltage: 120-277V
- CRI: 80
- Dimmable: No
- Bulb Shape: Corn
- Rated Life: 50,000 hours
- Warranty: 5 Year
Benefits
- Field-selectable wattage reduces the number of replacement SKUs to stock
- Retains the existing fixture housing when replacing compatible 175W HID lamps
- Type B ballast-bypass operation removes the existing ballast from the circuit
- Multidirectional corn-style distribution for open commercial fixtures
Applications
- Compatible post-top and area-light fixtures
- Compatible wall packs and security lights
- High bays and low bays with adequate lamp clearance
- Parking lot and shoebox fixtures
- Enclosed fixtures where the lamp is rated for enclosed use
Downloads
Disclaimers
*This product is built to order and typically ships in 2 to 3 business days. Larger quantities may require additional processing time. All lead times are estimates, and you will be notified by email if the order is expected to take longer than 5 business days to ship.
