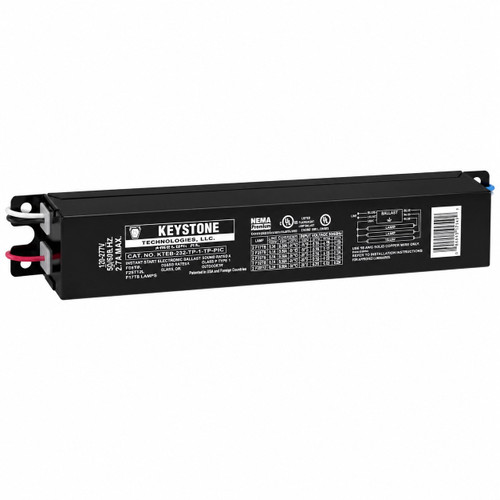

Keystone KTEB-332-UV-IS-N-P - 3 Light F32T8 Electronic Ballast

Keystone Technologies
SKU:
KTEB-332-UV-IS-N-P
Keystone KTEB-332-UV-IS-N-P - 3 Light F32T8 Electronic Ballast
Minimum Order Quantity:
10 units
To help ensure safe arrival of this product and to give you the lowest possible price, this item is only sold in case quantities. Price shown is per item. View full description
$17.52
Customer Reviews
Pack
10

Description

3 x F32T8 Replacement Light Ballast | 120-277V | High Power Factor | Instant Start

Keystone KTEB-332-UV-IS-N-P is a 3 lamp T8 electronic ballast designed to operate F32T8 fluorescent lamps on 120-277V multi-voltage power. This instant start ballast uses parallel lamp connection, provides high power factor performance, has normal ballast factor, and is built for commercial fluorescent fixture replacement applications requiring a premium series T8 ballast.

Product Specifications

  • Brand: Keystone Technologies
  • Model Number: KTEB-332-UV-IS-N-P
  • Product Type: T8 electronic ballast
  • Primary Lamp Type: F32T8
  • Number of Lamps: 3 lamp operation
  • Compatible Operation: Also operates 2 lamp applications when wired according to manufacturer diagram
  • Input Voltage: 120-277Vac +/-10%
  • Input Frequency: 50/60 Hz
  • Starting Method: Instant start
  • Lamp Connection: Parallel
  • Power Factor: High, greater than 0.90
  • Ballast Factor: Normal ballast factor
  • Ballast Factor for 3 x F32T8 32W: 0.88
  • Input Watts for 3 x F32T8 32W: 83.6W at 120V, 82.6W at 277V
  • Nominal Line Amps for 3 x F32T8 32W: 0.73A at 120V, 0.30A at 277V
  • Maximum THD: 10%
  • Crest Factor: Less than 1.70
  • Minimum Starting Temperature: 0F / -18C for F32T8 32W lamps
  • Maximum Case Temperature: 167F / 75C
  • Maximum Output Voltage: 600V
  • Maximum Voltage to Ground: 600V
  • Sound Rating: A
  • Case Material: Steel
  • Case Style: L4
  • Length: 9.50 inches
  • Width: 1.30 inches
  • Height: 1.18 inches
  • Mounting: 9.00 inches
  • Lead Wire: 18 AWG, 105C/600V, solid copper
  • Standard Lead Lengths: Black 25 inches, white 25 inches, blue 31 inches, red 37 inches
  • Listings: UL and cUL Listed, Class P, Type 1 Outdoor
  • Compliance: 2014 DOE compliant, FCC Part 18 Class A non-consumer limits, ANSI C82.11 and C62.41
  • Additional Features: Anti-striation circuitry, Type HL
  • Warranty: 5 years

Benefits

  • Replaces compatible 3 lamp F32T8 electronic ballast applications.
  • 120-277V universal voltage supports common commercial and industrial fixture installations.
  • Instant start operation provides fast lamp starting in compatible T8 fluorescent fixtures.
  • Parallel lamp connection allows remaining lamps to stay operating if one lamp fails in many applications.
  • High power factor design is suitable for commercial lighting systems.
  • Normal ballast factor supports standard light output for compatible T8 lamps.
  • Anti-striation circuitry helps improve lamp appearance and performance.
  • UL and cUL Listed Class P, Type 1 Outdoor rating supports qualified fixture replacement use.
  • Compact L4 case design fits many existing fluorescent fixture ballast channels.

Applications

  • 3 lamp F32T8 fluorescent fixtures
  • Commercial fluorescent fixture repair
  • Office lighting fixtures
  • Troffers and lay-in fixtures
  • Strip light fixtures
  • Warehouse fluorescent lighting
  • Retail fluorescent lighting
  • School and facility lighting maintenance
  • Replacement T8 ballast projects

Downloads


Disclaimers

*This product is built to order typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time.  All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship. Keystone has multiple warehouse's around the country to help serve you better.

Non-Returnable Item Notice:

Due to the sensitive electronic nature of ballasts and the risk of improper installation, tampering, or programming, this item is non-returnable. Please confirm compatibility before purchasing. If your ballast is defective upon arrival or during the warranty period, it may be eligible for a manufacturer warranty replacement. For assistance selecting the correct ballast, please contact our support team.

Extra Information

Brand:
Keystone Technologies
UPC:
890949004029
Catalog No:
KTEB-332-UV-IS-N-P
Ballast Type:
Fluorescent
Light Source:
Fluorescent
Dimmable:
No
Starting Method:
Instant Start
Lamp Connection:
Parallel
Input Voltage:
120-277Vac ±10%
Input Frequency:
50/60 Hz
Power Factor:
High
Height (in.):
1.18
Width (in.):
1.30
Length (in.):
9.50
Warranty:
5 Year
Pack:
10
