300mA Replacement LED Driver | 10W Max | 120V | Forward Phase Dimming | Class P

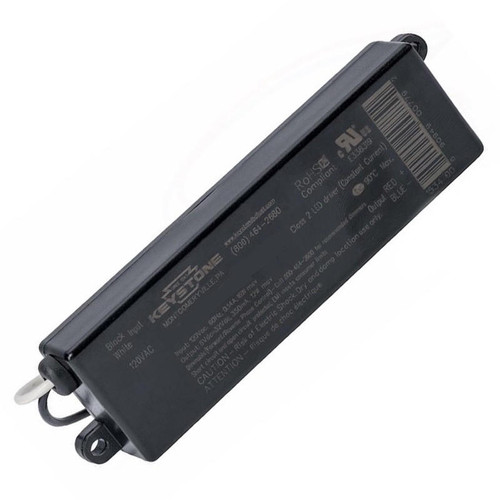

Keystone KTLD-10-1-300-FDIM-AF1 is a 10W constant current LED replacement driver with 300mA output current and 10-33V output voltage. This single-output driver operates on 120V input power, supports leading edge and trailing edge dimming, and is designed for dry and damp location LED fixture applications.
Product Specifications
- Brand: Keystone
- Model: KTLD-10-1-300-FDIM-AF1
- Product Type: Constant current LED driver
- Driver Type: Constant Current
- Maximum Output Power: 10W
- Output Current: 300mA
- Output Voltage: 10-33V
- Open Circuit Voltage: 46V
- Number of Outputs: One
- Input Voltage: 120V AC +/-10%
- Input Frequency: 60 Hz
- Power Factor: >0.9 under 120V input with 80-100% load condition
- Maximum Input Current: 0.12A at 120V
- Inrush Current: 20A at 120V
- THD: <20% under 120V input with 80-100% load condition
- Efficiency: 75% typical at 120V
- Dimming Type: Leading edge and trailing edge dimming
- Load Regulation: +/-2%
- Line Regulation: +/-1%
- Voltage Tolerance: +/-5% at full load condition
- Turn-On Delay Time: <0.75 seconds at full load condition
- No Load Power Consumption: <1W
- Ripple and Noise: <10%
- Protection: Over voltage, over current, and short circuit protection
- Protection Mode: Hiccup mode with auto recovery after fault is removed
- Withstand Voltage: Input to output, 2800V DC, 2mA
- Leakage Current: Maximum 0.5mA at 120V AC, 60 Hz input
- Remote Mounting Distance: 124 ft with #18 AWG wire
- Class 2: US and Canada
- Safety Listing: UL Listed, Class P
- Safety Compliance: UL/cUL, EN61347-1, and EN61347-2-13
- EMC Compliance: FCC 47CFR Part 15 ANSI C63.4:2009 Class B Consumer Limit
- Harmonic Current Compliance: EN61000-3-2 Class C
- Location Rating: IP20 design for dry and damp locations
- Operating Temperature: -40 C to 60 C
- Storage Temperature: -40 C to 85 C
- Humidity: 5% to 95%
- MTBF: 570,000 hours at 40 C ambient
- Life Rating: 80,000 hours at 120V AC input, 100% load, and 60 C case temperature
- Maximum Case Temperature: 90 C
- Case Material: Plastic
- Length: 4.86 inches
- Width: 1.30 inches
- Height: 0.79 inches
- Mounting Length: 4.57 inches
- Input Wires: 12 inch UL 1316 #18 AWG black and white leads
- Output Wires: 12 inch UL 1316 #18 AWG red and blue leads
- Carton Quantity: 40 pieces
- Warranty: 5 years
- UPC: 890949007778
Benefits
- 300mA constant current output supports compatible LED fixture and module applications.
- 10-33V output voltage range provides flexibility for matching compatible LED loads.
- Forward phase dimming supports leading edge and trailing edge dimmer applications.
- Compact plastic housing supports installation in fixtures with limited driver space.
- Over voltage, over current, and short circuit protection help protect the driver and connected LED load.
- Class P and Class 2 design supports code-focused LED driver replacement applications.
- IP20 construction supports dry and damp location installations.
Applications
- LED driver replacement projects
- Constant current LED fixture repairs
- 300mA LED module applications
- Forward phase dimmable LED fixtures
- Commercial LED lighting maintenance
- Residential LED fixture repairs
- Dry and damp location LED installations
