Replacement 24V LED Driver - 96W Max Output - 120-277V Input - Fixed Output

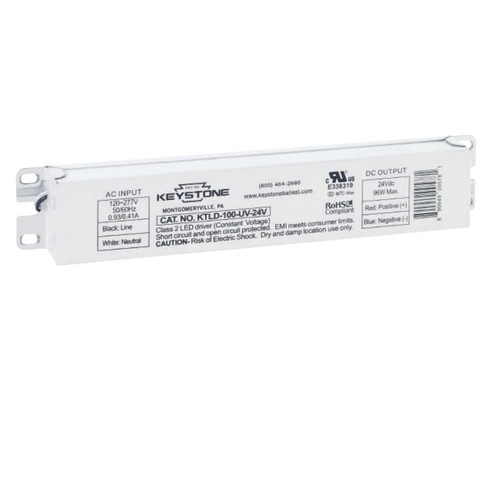

The Keystone KTLD-100-UV-24V is a constant voltage LED driver designed for 24Vdc LED lighting systems requiring dependable fixed-output power. This driver supports universal 120-277Vac input, delivers up to 96W maximum output power, and is suitable for dry and damp locations. It is a strong replacement option for compatible 24V LED fixtures, tape light systems, linear lighting, and other Class 2 constant voltage applications.
Product Specifications
- Brand: Keystone Technologies
- Model: KTLD-100-UV-24V
- Driver Type: Constant Voltage LED Driver
- Maximum Power: 96W
- Input Voltage: 120-277Vac +/-10%
- Input Frequency: 50/60 Hz
- Output Voltage: 24Vdc
- Maximum Output Current: 4A
- Minimum Output Current: 0A
- Power Factor: Greater than 0.9
- Efficiency: 88%
- THD: Less than 20%
- Dimming: Fixed Output
- Output Class: Class 2
- Location Rating: Suitable for Dry and Damp Locations
- Case Material: Metal
- Case Style: L5
- Dimensions: 9.50" Length x 1.70" Width x 1.18" Height
- Mounting: 8.90"
- Warranty: 5 Years
Benefits
- Provides constant 24Vdc output for compatible low-voltage LED systems
- Universal 120-277V input supports commercial and residential electrical applications
- Class 2 output helps simplify use with approved LED lighting systems
- Built-in over-current and short-circuit protection for added reliability
- Metal case construction supports durable installation
- Suitable for dry and damp location use
- UL Listed and designed to meet FCC Class B consumer limits
Applications
- 24V LED tape light systems
- Linear LED lighting
- Accent and display lighting
- Under cabinet LED lighting
- Commercial LED fixture replacement drivers
- Dry or damp location LED installations
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship.
Non-Returnable Item Notice:
Due to the sensitive electronic nature of LED drivers and the risk of improper installation, tampering, or programming, this item is non-returnable. Please confirm compatibility before purchasing. If your LED driver is defective upon arrival or during the warranty period, it may be eligible for a manufacturer warranty replacement. For assistance selecting the correct driver, please contact our support team.
