Wattage and CCT Selectable Parking Garage Light| Power Failure 90 Min Run Time | 26W/39W/52W/65W | 120-277V

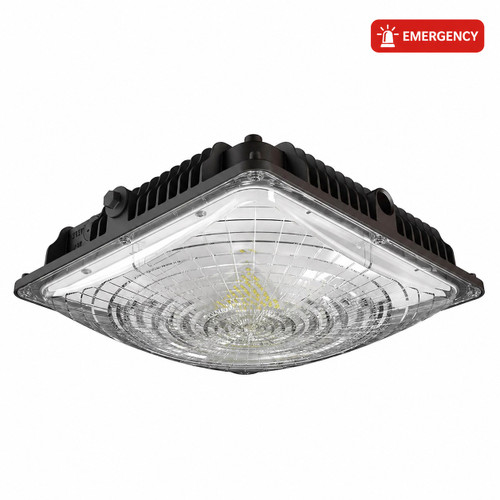

Our Bronze LED Emergency Battery Backup Square Garage Canopy Fixture combines field selectable light output with integrated emergency backup for commercial parking structures, covered walkways, and security lighting applications. Select from 26W, 39W, 52W or 65W and 4000K Cool White or 5000K Daylight to match site requirements, while the 4W emergency LED driver provides backup illumination during power loss for added life safety support.
Product Specifications
- Fixture Type: Square LED garage canopy fixture
- Wattage Selectable: 26W / 39W / 52W / 65W
- Lumen Output: 3929 / 5575 / 7132 / 8525 lumens
- CCT Selectable: 4000K Cool White / 5000K Daylight
- Input Voltage: 120-277V
- Emergency Driver Included: 4W
- Emergency Driver Input Voltage: 100-277 Vac, 50/60 Hz
- Emergency Output Current: 30-400mA
- Emergency Output Voltage: 10-60Vdc
- Battery: Li-ion 3.7V / 2500mAh
- Battery Charging Current: 300mA max
- Charging Time: >=24 hours
- Test Switch: Illuminated test switch and indicator light
- Emergency Ambient Rating: 32F to 120F
- CRI: >70
- Efficacy: >140 lumens per watt
- Beam Angle: 155 degrees
- Dimming: 1-10V continuous dimming
- Power Factor: >0.95
- Driver Efficiency: >89%
- Location Rating: Wet location
- Fixture Operating Temperature: -40F to 104F
- Fixture Dimensions: 9.52 x 9.52 x 3.03 inches
- Housing: Die cast aluminum with polycarbonate lens
- Finish: Dark Bronze
- Life Rating: 50000+ hours
- Warranty: 5 year limited
Benefits
- Integrated emergency battery backup supports illumination during power loss
- Selectable wattage allows field adjustment for changing light levels
- Selectable CCT provides application flexibility
- Slim low-profile design suits parking structures and commercial canopies
- High efficacy performance helps reduce operating costs
- Wet location construction supports indoor and outdoor covered use
- Excellent for retrofit or new construction projects
Applications
- Parking garages
- Parking structures
- Covered walkways
- Commercial canopies
- Warehouse entrances
- Service stations
- Emergency egress lighting support
