Description

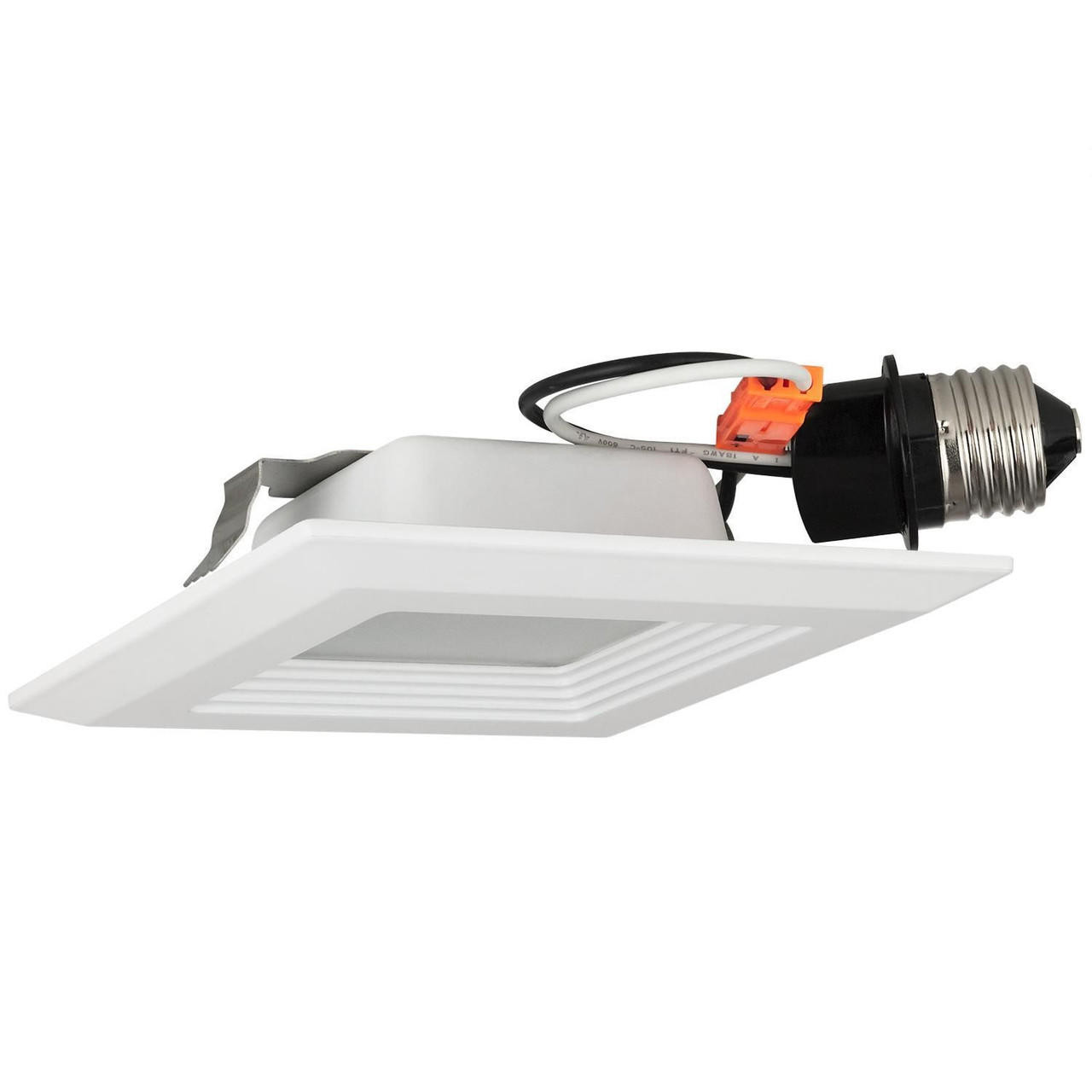

4-Inch Square Retrofit Downlight For Commercial Retrofit Ceilings | Cool White (4000 K) Damp-Location, Forward-Phase Dimmable
Upgrade existing 4" ceiling cutouts with a compact, energy-saving square retrofit that reduces maintenance and delivers consistent Cool White illumination. This low-profile fixture is ideal for commercial retrofit projects that need quick installation, forward-phase dimming compatibility, and reliable performance in damp locations.
KEY FEATURES:
- Compact Retrofit Design: 4" square retrofit form factor fits standard ceiling openings for fast replacements.
- Energy Efficient Output: Produces 630 lumens at just 9W to lower energy use while maintaining task-level light.
- Forward-Phase Dimmable: Compatible with triac/incandescent dimmers for smooth brightness control.
- Even Light Distribution: Polycarbonate lens with 110° beam spread reduces glare and provides uniform coverage.
- Durable Construction: Aluminum and plastic housing built for commercial environments and damp locations.
APPLICATIONS:
- Ideal for offices, retail aisles, and corridor lighting retrofit projects.
- Perfect for multifamily common areas or hospitality corridors where low-profile fixtures are preferred.
- Suited for renovation installs in suspended ceilings and retrofit kits.
- Installation Tip: Use compatible forward-phase (triac) dimmers for reliable dimming performance.
SPECIFICATIONS:
- Wattage: 9W
- Lumens: 630
- Beam Spread: 110°
- Color Temperature: 4000K (Cool White)
- CRI: 80
- Power Factor: 0.9
- Input Voltage: 120V
- Dimmable: Forward Phase (Triac or Incandescent)
- Fixture Material: Aluminum & Plastic
- Lens Material: Polycarbonate
- Shape: Square
- Dimensions: 4.92" x 4.92" x 2.48"
- Operating Temperature: -20° to 40° C
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certification: ETL - Damp Location
- Warranty: 5 Years
