Description

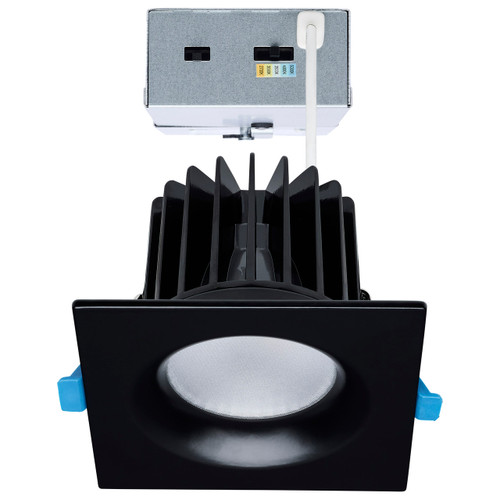

Commercial Square Downlight With Field-Selectable CCT And Dual Dimming | Wet-Rated Indoor Fixture For Offices And Retail
Engineered for fast retrofits and flexible lighting design, this Satco downlight delivers selectable light levels and color temperatures to suit offices, retail floors, and hospitality spaces while reducing maintenance with a 50,000-hour rated LED engine and robust surge protection.
KEY FEATURES:
- Field-Selectable Wattage: Choose 16W, 20W, or 24W to balance brightness and energy use.
- Wide Color Options: Select between warm to natural tones (2700K–5000K) for precise ambiance matching.
- Dual Dimming: Phase-cut and 0-10V compatible for smooth, versatile dimming control.
- High Color Fidelity: CRI 90+ improves product and material appearance in retail and display areas.
- Wet-Rated Indoor Use: Suitable for wet locations and compatible with 3" can installations.
- Reliable Performance: Built-in 2KV surge protection and >0.9 power factor for stable operation.
APPLICATIONS:
- Ideal for office ceilings, retail aisles, and hotel common areas seeking quality, low-maintenance illumination.
- Well suited for remodels where selectable wattage and color temperature reduce SKU inventory.
- Good choice for damp or wet indoor locations requiring rated fixtures.
- Installation Tip: Use 3" ceiling cut and verify 120-277V supply and preferred dimming control before wiring.
SPECIFICATIONS:
- Wattage: 16W / 20W / 24W
- Lumens: 1300L / 1600L / 2000L
- Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI: 90+
- Beam Angle: 40°
- Voltage: 120-277V
- Power Factor: >0.9
- Rated Life: 50,000 hours
- Finish: Black
- Shape / Can Size: Square / 3 in.
- Dimming Type: Phase-Cut and 0-10V
- Surge Protection: Built-in 2KV
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listings: cETLus Listed
- Energy Compliance: Energy Star Certified (ID 3999677); Title 20 Exempt; T24 Compliant
- Other Compliance: JA8 Listed; FCC Compliant; IC Rated; RoHS Compliant; CA Prop 65 information applies
