Description
600W/54W HID Replacement - 45,869/35,334/24,442 lm - Wattage and CCT Selectable - Type B Ballast Bypass

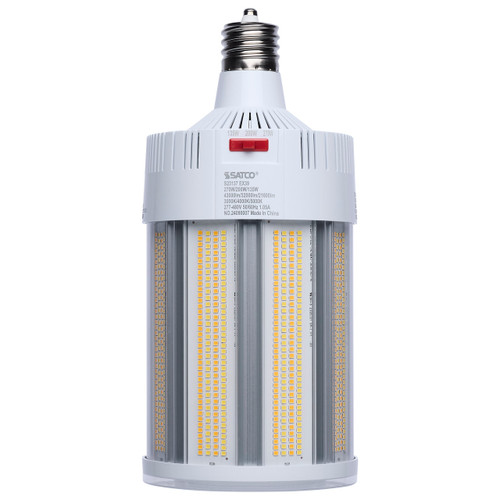

The Satco S23137 is a wattage-selectable LED corn bulb rated to replace compatible 600W/54W HID lamps from an EX39 Mogul Extended base. Explore more HID-to-LED bulbs by replacement wattage, lumen output, base type, voltage and operation type.
Product Specifications
- Brand: Satco
- Manufacturer Model: 270W/LED/CCT/277-480V/EX39
- Actual LED Wattage: Selectable 270W/200W/135W
- HID Replacement: 600W/54W
- Lumen Output: 45,869/35,334/24,442 lm
- Color Temperature: CCT Selectable (3000K/4000K/5000K)
- Base: EX39 Mogul Extended
- Operation Type: Type B | Ballast Bypass (direct-wire line voltage)
- Voltage: 277-480V
- CRI: 80
- Dimmable: Yes
- Bulb Shape: Corn
- Warranty: 5 Years
Benefits
- Field-selectable wattage reduces the number of replacement SKUs to stock
- Selectable color temperature lets one lamp cover multiple installations
- Retains the existing fixture housing when replacing compatible 600W/54W HID lamps
- Type B ballast-bypass operation removes the existing ballast from the circuit
Applications
- Parking lots, pole-mounted area lighting, and street/industrial perimeter illumination
- High-mast and site-security installations requiring reliable, high-output LED performance
- Retrofit projects replacing 600W HID lamps to cut maintenance and energy costs
- Damp-location fixtures per the stated rating
