Description

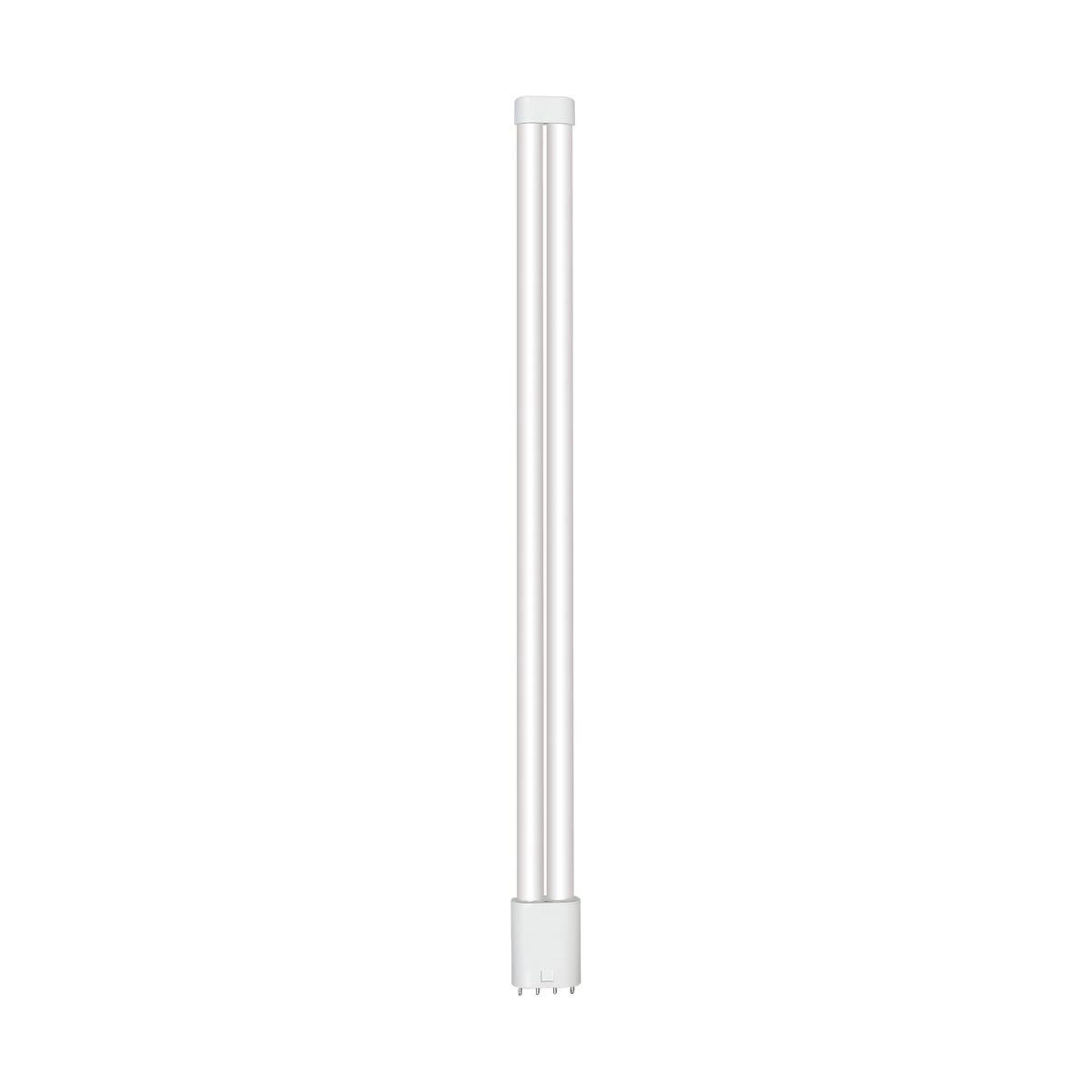

Energy-Efficient 16.5-inch LED PL Lamp | 15W Type B Retrofit | 2G11 Base | Cool White
he SATCO S9953 15PLL/LED/840/BP is a 16.5-inch LED PLL lamp designed to replace traditional 36W fluorescent PL lamps. This Type B ballast bypass lamp operates directly on 120-277V, eliminating the need for a ballast, reducing maintenance, and ensuring long-term energy savings. With a 4000K cool white color temperature, this lamp delivers bright and balanced illumination suited for commercial and residential applications. The frosted lens enhances light diffusion, providing smooth and even illumination.
Features
- Ballast Bypass (Type B) – Eliminates ballast dependency, reducing maintenance and installation costs
- 15W LED Efficiency – Replaces 36W fluorescent PLL lamps for lower energy consumption
- 4000K Cool White – Produces crisp, neutral lighting ideal for workspaces and commercial areas
- 2G11 Base – Compatible with PLL-style fixtures
- Frosted Lens – Ensures even light distribution without glare
- 270° Beam Angle – Wide light spread for greater coverage
- Universal Operating Position – Allows flexible fixture installation
- UL Damp Location Rated – Suitable for humid indoor environments
- Rated for Enclosed Fixtures – Ensures safe and effective operation in enclosed applications
- 5-Year Limited Warranty – Guarantees long-term performance and reliability
Benefits
- Hassle-Free Installation – Direct wiring eliminates ballast compatibility issues
- Energy Savings – Uses 60% less energy compared to fluorescent PLL lamps
- Long Lifespan – 50,000-hour rating reduces the need for frequent replacements
- Better Light Quality – 4000K cool white enhances visibility and productivity
- Safe & Compliant – Meets cULus, RoHS, and FCC safety standards
Applications
- Office Buildings – Ideal for conference rooms, hallways, and general office lighting
- Retail & Hospitality – Enhances lighting in stores, hotels, and commercial spaces
- Educational Facilities – Provides consistent, flicker-free illumination for classrooms
- Healthcare & Senior Living Centers – Delivers clean, bright light for patient rooms and hallways
- Residential Use – Suitable for kitchens, garages, and workspaces
Product Specifications
- Wattage: 15W
- Fluorescent Equivalent: 36W
- Voltage: 120V-277V
- Ballast Type: Type B (Ballast Bypass)
- Shape: T5 PLL
- Base: 2G11
- Nominal Length: 16.5 inches
- Color Temperature: 4000K (Cool White)
- CRI: 80
- Lumen Output: 2000L
- Beam Angle: 270°
- Dimmable: No
- Operating Position: Universal
- Operating Temperature: -4°F to 113°F (-20°C to +45°C)
- Lens Finish: Frosted
- Rated for Enclosed Fixtures: Yes
- Certifications: cULus Listed, RoHS Compliant, FCC Compliant, NSF Approved
- DLC Approved: No
- Warranty: 5-Year Limited Warranty
