Description

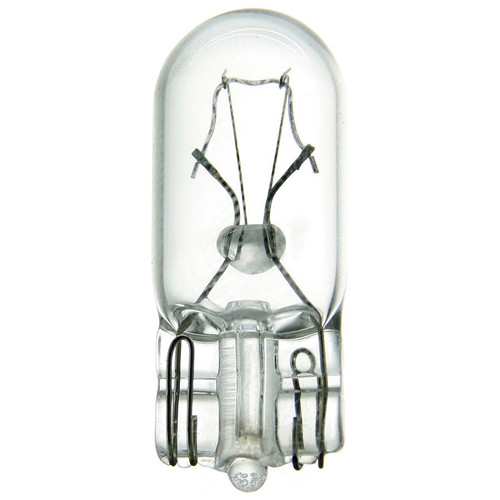

Low-Voltage T3.25 Miniature Wedge Replacement Lamp For Instrument Panels, Accent Lighting, And Signage Applications
Compact and dependable, the Sunlite 07240-SU miniature T3.25 wedge lamp delivers low-voltage illumination ideal for instrument panels, indicators, and accent applications. Its 1.12W design runs on 28V while producing consistent warm-white output with minimal maintenance over its rated life.
KEY FEATURES:
- Compact Size: T3.25 form factor and 0.4" diameter fit tight housings and instrument clusters.
- Low Power: 1.12W consumption provides efficient illumination for low-voltage systems.
- Warm White Output: 2800K warm-white light suitable for indicators and decorative accents.
- Reliable Performance: Rated for 2,000 hours with a C2F filament construction for consistent operation.
APPLICATIONS:
- Ideal for instrument panels and control boards in industrial or automotive equipment.
- Well-suited for signage, accent lighting, and decorative fixtures where small lamps are required.
- Useful in appliances, indicators, and specialty lighting installations needing low-voltage bulbs.
- Tip: Verify socket compatibility with Miniature Wedge (W2.1x9.5d) before installation.
SPECIFICATIONS:
- Wattage: 1.12W
- Volts: 28V
- Amps: 0.04A
- Lumens: 0.5
- Color Temperature: 2800K (Warm White)
- CRI: Cannot Source
- Base Type: Miniature Wedge (W2.1x9.5d)
- Bulb Shape: T3.25
- ANSI Code: 585
- Filament: C2F
- Finish: Clear
- Diameter: 0.4"
- Item Dimensions (WxHxD): 0.389" x 0.389" x 0.979"
- Average Rated Hours: 2,000
- Dimmable: No
- Pack Size: 10
- Package Type: Box
- Item UPC: 653703072401
CERTIFICATIONS & ADDITIONAL NOTES:
- UL Rated For Enclosed Fixtures: No
- Safety Rated For USA: No
- RoHS Compliant: No
