Description
Outdoor LED Floodlight Fixture With Photocell And 0-10V Dimming - Soft White - Cool White - Daylight Selectable For Security And Building Exteriors

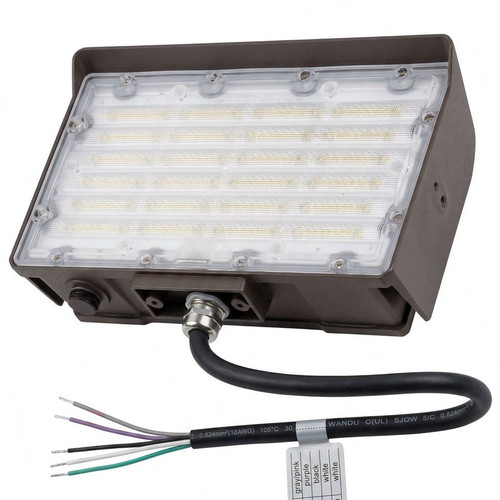

Built for reliable exterior illumination, the Sunlite 85681-SU LED floodlight delivers versatile color temperature options and robust performance for commercial and security lighting. Its selectable color temps and integrated controls simplify stocking and installation while reducing maintenance needs compared with legacy HID fixtures.
KEY FEATURES:
- Selectable Color Temperatures: Switch between 3000K, 4000K, and 5000K for application-specific optics and mood.
- Multiple Wattage Options: Offered in 45W, 50W, 60W, and 80W power levels to match lumen needs and energy budgets.
- Integrated Controls: Built-in photocell and 0-10V dimming compatibility enable automated dusk-to-dawn control and smooth dimming.
- Durable Construction: Die-cast aluminum housing with clear polycarbonate lens for long outdoor service life.
- Long Life & Performance: Uses Lumileds 2835 LEDs, rated for 50,000 hours with a power factor of 0.90 and CRI 80.
APPLICATIONS:
- Ideal for building exteriors and parking lot perimeters where consistent security lighting is required.
- Well-suited for commercial site illumination and outdoor signage lighting.
- Perfect for retrofit or new-install floodlighting in industrial campuses and campuses.
- Usage Tip: Use the photocell to automate dusk-to-dawn operation and pair with 0-10V controls for lumen tuning.
SPECIFICATIONS:
- Wattage: 45W / 50W / 60W / 80W
- Lumens: 6000 / 7500 / 9000 / 12000
- Voltage: 120-277V
- Dimming: 0-10V Low Voltage (0-100%)
- Color Temperature: 3000K / 4000K / 5000K
- CRI: 80
- Average Rated Hours: 50,000 hours
- Fixture Material: Die-Cast Aluminium
- Lens Material: Polycarbonate (Clear)
- Beam Angle: 115 deg x 100 deg
- Power Factor: a0.90
- LED Chip: Lumileds 2835
- Operating Temperature: -4 degF to 113 degF
- Mounting: Universal (Trunnion/Knuckle options)
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Listed - Wet Location
- Photocell: Included
- Mercury: Mercury Free
- Warranty: 5 Year Warranty
