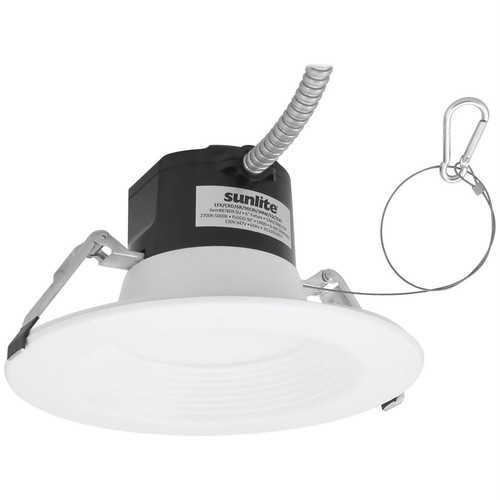

CCT Selectable 6-Inch Recessed Downlight With 0-10V Dimming For Commercial And Residential Ceilings, Offices, And Retail
Designed for retrofit and new construction ceilings, this 6-inch recessed downlight delivers selectable color temperatures and high-quality light for commercial and residential spaces. The integrated 0-10V dimmable driver and multiple lumen/watt options simplify upgrades while reducing maintenance and energy costs.
KEY FEATURES:
- CCT Selectable: Choose from 2700K, 3000K, 3500K, 4000K, or 5000K to match interior lighting needs.
- Multiple Outputs: Three lumen/watt options (1500/2100/3000 lm) at 13W, 19W, and 27W for application flexibility.
- Smooth Dimming: 0-10V low-voltage dimming provides consistent 10-100% dimming range for scenes and energy savings.
- Durable Construction: Aluminum fixture with a white plastic lens for long-lasting performance and even light distribution (90 deg beam angle).
- Long Life: Rated for 50,000 hours with a 5-year warranty for reduced maintenance.
APPLICATIONS:
- Ideal for office ceilings and open-plan workspaces requiring uniform, energy-efficient lighting.
- Suitable for retail environments where selectable CCT helps match merchandising or display needs.
- Well-suited for residential common areas, corridors, and retrofit projects seeking upgraded LED performance.
- Usage Tip: Use lower CCTs for warm, hospitality-style spaces and higher CCTs for task-focused commercial areas.
SPECIFICATIONS:
- Wattage: 13W / 19W / 27W
- Lumens: 1500 / 2100 / 3000
- Color Temperature: CCT Selectable (2700K / 3000K / 3500K / 4000K / 5000K)
- CRI: 90
- Voltage: 120-347V
- Dimming Type: 0-10V Low Voltage (10-100%)
- Average Rated Hours: 50,000
- Beam Angle: 90 deg
- Size: 6" aperture
- Power Factor: 0.9
- Fixture Material: Aluminum
- Lens Material: Plastic (White Finish)
- Operating Temperature: -4 degF to 104 degF
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: ETL Listed
- Location Rating: Damp Location
- IC Rated: Yes
- Mercury Free: Yes
- Warranty: 5-year warranty
