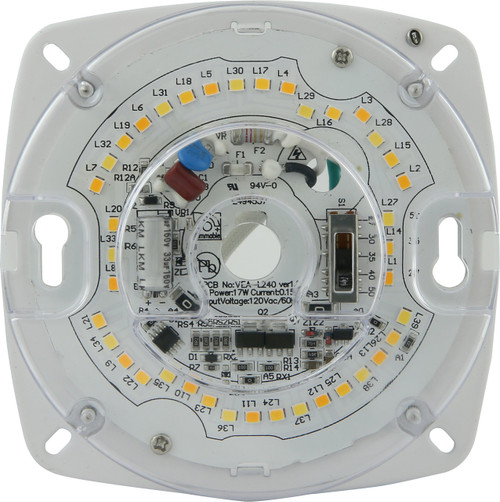

4in LED Retrofit Module For Decorative Ceiling Fixtures | CCT Selectable Lighting Engine | Triac Dimming Compatible
Upgrade existing decorative ceiling fixtures and fans with a compact 4in LED module that delivers bright, selectable white tones and reliable dimming for simple, low-maintenance retrofits.
KEY FEATURES:
- Easy Retrofit: Installs with basic wiring to replace older modules while preserving decorative fixtures.
- Color Flexibility: Front-mounted selector offers five tones from warm to daylight for tailored ambiance.
- Energy Savings: Produces up to 1050 lumens while consuming just 17W—equivalent to an 80W incandescent.
- Dimming: Forward-phase (Triac) dimming compatible for smooth 5–100% control with listed dimmers.
- Durable Design: Metal and plastic construction with a low-profile 4.4" diameter and 0.78" height.
- Long Life & Color Quality: 25,000-hour rated life and high 90 CRI for accurate color rendering.
APPLICATIONS:
- Ideal for decorative ceiling fixtures and flush mounts in residential settings.
- Suited for ceiling fans and fixture retrofits in hospitality or retail environments.
- Effective replacement for circline fluorescent modules when performing ballast bypass installs.
- Tip: Pair with Triac-compatible dimmers for best dimming performance and minimal flicker.
SPECIFICATIONS:
- Wattage: 17W
- Lumens: 850/900/1050 (varies by selected CCT)
- Color Rendering Index (CRI): 90
- Color Temperature: CCT Selectable (2700K, 3000K, 3500K, 4000K, 5000K)
- Dimmable: Yes
- Dimming Type: Forward Phase (Triac)
- Rated Life: 25,000 hours
- Beam Angle: 180°
- LED Chip: 2835
- Power Factor: 0.9
- Flicker: <30%
- Material: Metal & Plastic
- Size: 4.4" Diameter x 0.78" Height
- Safety Rating: ETL Listed For Damp Locations
- Safety Rated For: USA, Canada
- Mercury Free: Yes
- Warranty: 5 years
