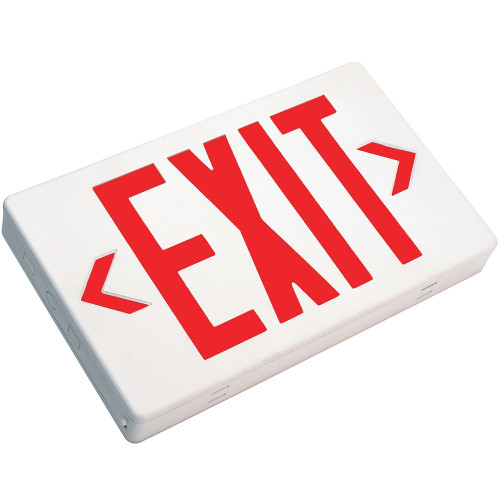

Compact Double-Sided Thermoplastic Exit Sign For Ceiling Or Wall Mounts | Red LED | Universal Voltage And Easy Installation
Provide reliable, low-energy egress lighting with this compact TCP exit sign. Engineered for quick snap-together installation and clear 6" lettering, model 22742 delivers dependable visibility for corridors, stairwells, and public spaces while minimizing maintenance and energy use.
KEY FEATURES:
- High Visibility: Bright red LEDs illuminate 6" letters with 3/4" stroke for clear signage in corridors and exits.
- Contractor-Friendly Installation: Snap-together thermoplastic housing and universal mounting options speed installs and retrofit work.
- Low Energy: Only 2.0W power draw provides long life with minimal operating cost.
- Accessible Service Controls: Push-button test switch and LED indicator simplify maintenance checks.
- Code-Ready: ETL listing for damp locations and UL/NEC compliance support life-safety installs.
APPLICATIONS:
- Retail spaces and shopping centers
- Industrial facilities and warehouses
- Educational buildings and schools
- Tip: Use universal mounting orientation (top, end, or side) to keep exit signage visible along egress paths.
SPECIFICATIONS:
- Form Factor: LED Compact Thermoplastic Exit Sign
- Color: Red
- Power: AC Only
- Voltage: Dual 120/277V
- Wattage: 2.0W
- Listings: ETL Listed for Damp Locations; UL 94V-0 flame rating; Meets UL924, NFPA 70 and 101 Life Safety Code, NEC
- Height: 1.7 in
- Width: 7.1 in
- Options On This SKU: AC Only
Downloads
Disclaimers
*Typically ships within 2-3 business days. Lead times are estimates and may vary based on quantity and availability.
