Description
1x4 Rectangle LED Direct Troffer with Emergency Battery Backup | 23W and 5000K

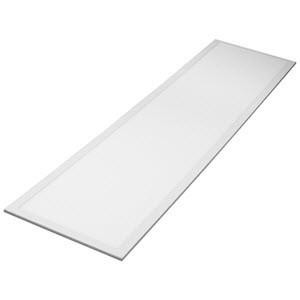

The TCP DTF1UZD2350KEB is a 1x4 LED direct troffer with a built-in emergency battery backup that keeps it lit during a power outage. It delivers 23W at 5000K. It drops into standard 1" and 9/16" T-bar grid ceilings and replaces T5, T8, and T12 fluorescent troffers.
Features
- Built-in emergency battery backup
- 23W, 2,600 lumens
- 5000K color temperature
- 0-10V dimming
- Backlit technology for even, full-panel light
- Frosted white diffuser for reduced glare
- LED driver with integrated junction box
- Quick-click driver installation
Specifications
- Product Code: DTF1UZD2350KEB
- Size: 1x4 ft
- Fixture Type: Direct Troffer
- Wattage: 23W
- Lumens: 2,600 lm
- Color Temperature: 5000K
- CRI: >80
- Voltage: 120-277V
- Dimming: 0-10V
- Beam Angle: 120°
- Rated Life: 50,000 hours
- Height: 2.75"
- Lumen Maintenance: L70 > 54,000 hours
- Rating: IP20
- Location Rating: Damp location, IC rated
- Warranty: 5 years
Emergency Operation
- Battery Backup: Built-in, factory installed
- Compliance: Battery backup is Title 20 compliant
Installation & Compatibility
- Fits standard 1" and 9/16" T-bar grid ceilings
Rebates & Certifications
- UL/cUL Listed, damp location rated
Applications
- Offices
- Schools
- Retail stores
- Hospitality and restaurants
- Healthcare
- Spaces that need code-required emergency lighting
Frequently Asked Questions
Does this fixture have emergency backup?
Yes. It has a built-in battery backup when power is lost.
What ceiling grids does it fit?
Standard 1" and 9/16" T-bar grid ceilings.
Is it dimmable?
Yes, with a 0-10V dimming control.
Downloads
Disclaimers
Made to Order: This fixture is built by the manufacturer specifically for your order and typically ships in 2 to 3 weeks. Because it is custom-built, the manufacturer does not accept returns on this item. Please confirm the model, size, and specifications before ordering.
