Description
4" Recessed Retrofit Downlight | 120V | Dimmable | CCT Selectable 2700K / 3000K / 3500K / 4000K / 5000K Selectable

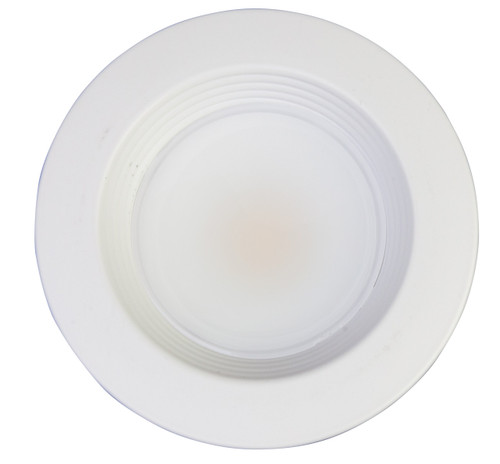

TCP LEDDR4BVCCT5 is a 9W 4" LED beveled 5CCT selectable downlight designed for retrofit and new construction projects in residential, office, retail, hospitality, remodeling, and drop ceiling applications. This dimmable recessed retrofit downlight replaces a 75W incandescent lamp, operates on 120V, delivers 900 lumens, and allows field selection of 2700K, 3000K, 3500K, 4000K, or 5000K color temperature.
Product Specifications
- Brand: TCP
- Model Number: LEDDR4BVCCT5
- Product Type: LED beveled 5CCT selectable downlight
- Fixture Size: 4"
- Installation Type: Recessed retrofit downlight
- Wattage: 9W
- Incandescent Replacement: 75W
- Lumen Output: 900 lumens
- Efficacy: 81.8 LPW
- Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K selectable
- Color Description: Warm White / Soft White / Neutral White / Cool White / Daylight
- Voltage: 120V
- Dimmable: Yes
- Dimming Type: Triac dimming
- CRI: 80
- Beam Angle: 90 degree
- Rated Life: 50,000 hours
- Maximum Overall Length: 1.5"
- Diameter: 5"
- Mounting: Recessed can retrofit with integrated trim
- Adapter: Integrated E26 base adapter
- Included Hardware: Pigtail and spring clips
- Location Rating: Damp location approved
- Listings: cULus Listed, RoHS
- Case Quantity: 12
- Warranty: 5 year limited warranty
Benefits
- 5CCT selectable design lets contractors choose 2700K, 3000K, 3500K, 4000K, or 5000K in the field.
- Replaces a 75W incandescent downlight while using only 9W.
- Integrated trim, E26 base adapter, pigtail, and spring clips support fast retrofit installation.
- Dimmable operation works with compatible Triac dimmers.
- Backlit technology provides smooth, uniform illumination.
- Beveled trim design gives recessed cans a clean finished appearance.
- Damp location approval supports use in suitable indoor damp environments.
- 50,000 hour rated life helps reduce maintenance and replacement frequency.
Applications
- Retrofit recessed cans
- New construction projects
- Residential lighting
- Office lighting
- Retail spaces
- Hospitality areas
- Drop ceilings
- Remodeling projects
- Low ceiling height commercial settings
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship.
