Description

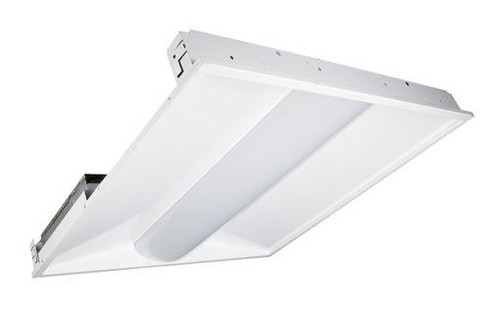

2x2 Square LED Volumetric Troffer | 23W and Selectable 3500K/4100K/5000K
The TCP TRV2UZD23CCT is a 2x2 LED volumetric troffer. Color temperature is selectable, so one fixture can match the light level and color the space needs. It drops into standard 1" and 9/16" T-bar grid ceilings and replaces T5, T8, and T12 fluorescent troffers.
Features
- Field-selectable color temperature: 3500K/4100K/5000K
- 23W, 3,100 lumens
- 0-10V dimming
- Cold-rolled steel housing with a white post-painted finish
- Acrylic diffuser with sloped reflector for wide, low-glare light
Specifications
- Product Code: TRV2UZD23CCT
- Size: 2x2 ft
- Fixture Type: Volumetric Troffer
- Wattage: 23W
- Lumens: 3,100 lm
- Color Temperature: 3500K/4100K/5000K selectable
- CRI: >80
- Voltage: 120-277V
- Dimming: 0-10V
- Rated Life: 50,000 hours
- Lumen Maintenance: L90 > 36,000 hours
- Rating: IP20
- Dimensions: 23-13/16" x 23-13/16" x 2-5/8"
- Location Rating: Damp location, IC rated
- Warranty: 5 years
Installation & Compatibility
- Fits standard 1" and 9/16" T-bar grid ceilings
Rebates & Certifications
- UL/cUL Listed, damp location rated
Applications
- Offices
- Schools
- Retail stores
- Hospitality and restaurants
- Healthcare
Frequently Asked Questions
Can I change the settings after installation?
Yes. color temperature (3500K/4100K/5000K) is selectable on the fixture.
What ceiling grids does it fit?
Standard 1" and 9/16" T-bar grid ceilings.
Is it dimmable?
Yes, with a 0-10V dimming control.
