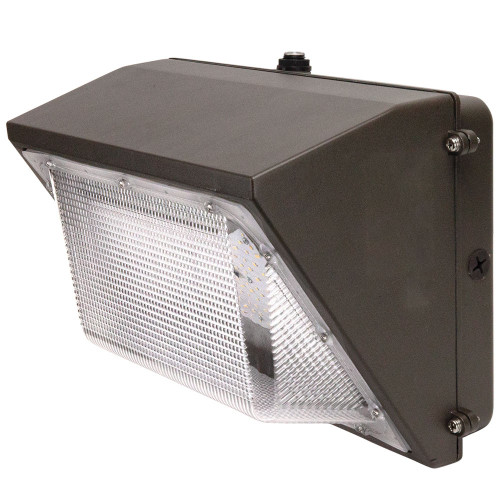

TCP TWPUZDB1CCT - 35/45/55W Bronze LED Wall Pack - CCT Selectable

SKU:
TCP-TWPUZDB1CCT
$142.49
Customer Reviews

Description

Select Series 35/45/55W LED Wall Pack | CCT Selectable | 120-277V | Bronze

The TCP TWPUZDB1CCT is a Select Series LED wall pack with selectable 35/45/55W output, CCT Selectable (2950K / 4000K / 5000K), and 4,725 / 6,075 / 7,425 lumens at 120-277V. It uses 0-10V dimming. The finish is bronze.

Product Specifications

  • Brand: TCP
  • Model / MPN: TWPUZDB1CCT
  • SKU: TCP-TWPUZDB1CCT
  • Family: Select Series Traditional Wall Pack
  • Wattage: 35/45/55W selectable
  • Lumens: 4,725 / 6,075 / 7,425
  • Color temperature: CCT Selectable (2950K / 4000K / 5000K)
  • CRI: >80
  • Voltage: 120-277V
  • Dimming: 0-10V
  • Photocell: Factory option (this SKU is the non-photocell model)
  • Finish: Bronze
  • Housing: Die-cast aluminum
  • Lens: Impact-resistant prismatic polycarbonate, 90 degree
  • Location rating: cULus wet location
  • Rated life: 50,000 hours
  • Efficacy: Up to 135 LPW
  • Power factor: >0.95
  • THD: less than 20%
  • Surge protection: 4 kV (line to ground)
  • Operating temperature: -40 C to 50 C (-40 F to 122 F)
  • Width: 14.2 in (360.7 mm)
  • Height: 9.2 in (233.7 mm)
  • Depth: 7.4 in (188.0 mm)
  • DLC: 5.1 Standard
  • Weight: 8.6 lb
  • Warranty: Five year limited
  • Lighting technology: Integrated LED

Benefits

  • On-site CCT and wattage selection with an internal switch that keeps the wet-location rating
  • 0-10V dimming
  • 2950K setting is listed as Dark Sky compliant on the TCP spec
  • Integrated 90 degree lens to reduce uplight
  • Same footprint as traditional HID wall packs for junction-box retrofits

Applications

  • Outdoor wall-mounted site and area lighting
  • Building entrances and perimeters
  • Security lighting
  • Parking lots and cargo doors

Compatible Accessories

  • TCP CPEBATTERY - 8W 90 min. waterproof emergency battery backup (field-installed accessory per the TCP spec)

Related Models

Downloads

TCP TWPUZDB1CCT Spec Sheet

Disclaimers

*This product typically ships in 2 to 3 business days. Larger quantities may take longer than stated lead-time. All lead-times are estimates and you will be notified by email if it will take longer than 5 business days to ship.

All prices shown are per item.

Extra Information

Brand:
TCP Lighting
UPC:
762148294528
Model Number:
TWPUZDB1CCT
Lighting Technology:
Integrated LED
Bulbs Included:
Integrated LED
Size:
Height 9.8 in x Width 12.2 in
Wattage:
35/45/55 Watt
Lumens:
4725/6075/7425 lm
Color Temperature:
CCT Selectable
CCT Range:
2950K/4000K/5000K
CRI:
>80
Finish:
Bronze
Material:
Die-cast aluminum
Voltage:
120-277V
Location Rating:
Wet
Dimmable:
Yes
Controls:
0-10V Dimming
Photocell:
Optional
Life Hours:
50000 hours
Light Type:
LED
Warranty:
Five year limited warranty
Weight:
8.6 lbs
