Description
IP65 Wet Location Vapor Tight Light | Emergency Backup | 120-277V | 0-10V Dimming | Cool White

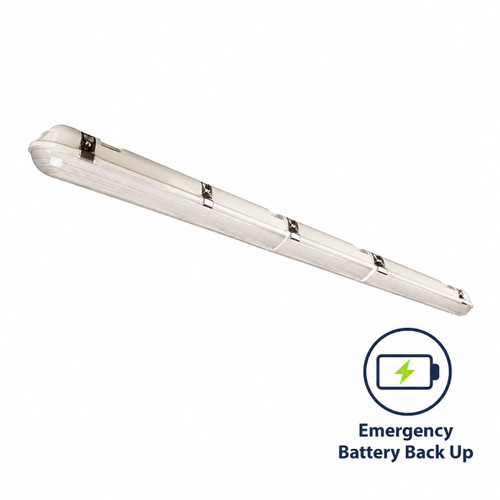

TCP VTF4UZDA240KEB is a 4 ft LED vapor tight fixture designed for wet location low bay applications including parking garages, car washes, cold storage areas, garden centers, corridors, stairwells, and hallways. This frosted lens vapor tight luminaire operates on 120-277V, uses 40W, delivers 5200 lumens, produces 4000K cool white light, includes 0-10V dimming, and is configured with emergency backup for added lighting support during power loss.
Product Specifications
- Brand: TCP
- Model Number: VTF4UZDA240KEB
- Product Type: LED vapor tight luminaire
- Fixture Length: 4 ft
- Lens: Frosted lens
- Wattage: 40W
- Lumen Output: 5200 lumens
- Efficacy: Greater than 130 LPW
- Color Temperature: 4000K
- Color Description: Cool White
- Voltage: 120-277V
- Input Line Frequency: 50/60 Hz
- Dimming: 0-10V dimming
- Emergency Backup: Yes
- Emergency Runtime: Cannot Source
- Emergency Output: Cannot Source
- Rated Life: 50,000 hours
- CRI: Greater than 80
- Power Factor: Greater than 0.9
- THD: Less than 20%
- Location Rating: IP65 wet location rated
- Listings: UL and cUL listed, RoHS compliant, DLC 5.1 listed
- Operating Temperature: -20C to 50C
- Approximate Length: 48.5"
- Approximate Width: 4.08"
- Approximate Height: 3.09"
- Housing: Plastic housing
- Clips: Stainless steel clips
- Warranty: 5 year limited warranty
Benefits
- IP65 wet location rating supports demanding commercial and industrial environments.
- Emergency backup option provides added lighting support during power loss.
- 40W LED design delivers 5200 lumens for efficient low bay and utility lighting.
- Frosted PC lens helps control glare and provide wide, even light distribution.
- 0-10V dimming supports compatible lighting control systems.
- Durable plastic housing is built for vapor tight wet location applications.
- Stainless steel clips allow easier lens removal for service access.
- 50,000 hour rated life helps reduce maintenance and replacement frequency.
Applications
- Parking garages
- Car washes
- Cold storage areas
- Garden centers
- Corridors
- Stairwells
- Hallways
- Wet location low bay lighting
- Commercial utility lighting
