Description

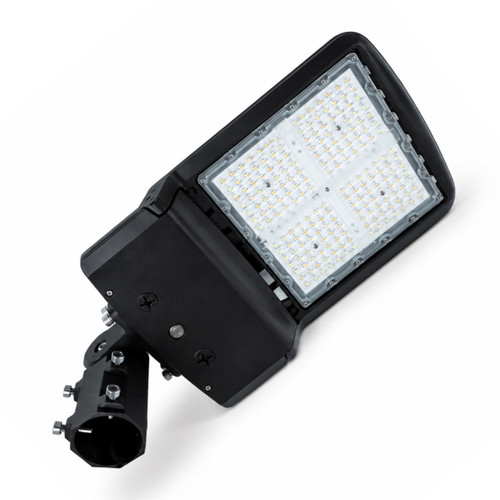

LED Shoebox Light | Type III Roadway & Perimeter Distribution | 200/250/300W Selectable | 3000K/4000K/5000K | 120-277V | IP66 Wet Location
Built for quick upgrades to older HID and legacy area lighting, this Topaz ARL fixture delivers selectable color temperature and power levels to adapt to changing site needs while reducing energy and maintenance demands. The integrated slipfitter mount and robust, wet-rated construction simplify installation and maximize uptime in demanding outdoor environments.
Ideal application: with up to 43,500 lumens at 300W, this Topaz shoebox light is built for large areas that need a lot of light, such as big parking lots, car dealerships, stadium-adjacent lots, industrial yards, ports, and logistics yards.
KEY FEATURES:
- Selectable Performance: Choose 200W, 250W, or 300W to balance lumen output and energy use for each application.
- CCT Flexibility: Switch between 3000K, 4000K, or 5000K on-site to match ambient lighting requirements.
- Durable Outdoor Design: Die-cast aluminum housing with IK08 impact-rated lens and IP66 wet-location rating for reliable exterior operation.
- Sensor & Control Ready: Photocell shorting cap included and an integrated 3-pin receptacle for PIR or microwave sensor accessories.
- Installation Ready: Slipfitter mount included plus 6ft SJOW cord and 6kVA surge protection for streamlined field installation.
APPLICATIONS:
- Ideal for parking lots and perimeter security lighting upgrades.
- Well suited for car dealerships and large-area commercial campuses.
- Effective for general area illumination in industrial and municipal sites.
- Installation Tip: Use the selectable wattage setting to match pole spacing and minimize glare at mounting heights of 20-40 ft.
SPECIFICATIONS:
- Product Code: ARL-300PCS-T3
- Topaz by Halco SKU: T73978
- Wattage: Selectable 200W, 250W, 300W
- Lumens: 31,000 - 43,500 lm
- Average Life: 100,000 hrs
- Color Temperature: Selectable 3000K, 4000K, 5000K
- CRI: 80
- Voltage: 120-277V
- Dimmable: Yes (0-10V)
- Light Distribution: Type 3
- Mount Included: Slipfitter Mount
- Dimensions (L×W×H): 30.12" × 14.96" × 5.83"
- Weight: 14.33 lb
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium, UL Listed, RoHS
- Location Rating: IP66 Wet Location
- Lens: IK08 Impact Rated Lens
- Warranty: 5-year limited warranty
- Controls & Accessories: Photocell ready (shorting cap included), Motion Sensor Receptacle (3-pin) available; Emergency Backup: No
Compatible Products
Topaz accessories listed on the ARL power and CCT selectable area light specification sheet for this fixture:
Mounting
- Topaz ARL-300PCS-POLMT-A - Adjustable Pole Mount for 150-300W ARL Area Lights
- Topaz ARL-480PCS-POLMT-F - Fixed Pole Mount for 150-480W ARL Area Lights
- Topaz ARL-150-480PCS-TMT - Trunnion Mount for 150-480W ARL Area Lights
- Topaz BH2/BZ-96 - Pole Mount 2-Fixture Straight Bullhorn - Bronze
- Topaz BH3/BZ-96 - Pole Mount 3-Fixture Bullhorn - Bronze - 2-3/8in Tenon
- Topaz BH3/120D/BZ-96 - Pole Mount 3-Arm Bullhorn - Bronze Finish - 120 deg
- Topaz BH4/90D/BZ-96 - 4-Fixture 90 deg Cross Bullhorn - Bronze - Fits 2 3/8in Tenon
Controls / Sensors
- Topaz WD-PC/TL/120-277 - Twist Lock Photocell Blue - 120-277V - Outdoor Area & Flood
- Topaz ARL-PCS-MMS - Microwave Motion Sensor for 150-480W ARL Area Lights
- Topaz ARL-PCS-PIR-MS - PIR Motion Sensor for 150-480W ARL Area Lights
- Topaz ARL-PCS-RM - Remote Control for ARL-PCS-MMS and ARL-PCS-PIR-MS Motion Sensors
Pole Adapters
- Topaz RND3TA/BZ-96 - Tenon Round Pole Adapter 3in to 2-3/8in - Wet Rated
- Topaz RND4TA/BZ-96 - Tenon Round Pole Adapter - Bronze - Wet Rated, 110 lb
- Topaz RND5TA/BZ-96 - Tenon Round Pole Adapter - Bronze - Wet Rated, 110 lb Capacity
- Topaz SQ4TA/BZ-96 - Tenon Square Pole Adapter - 4in to 2-3/8in Round - Wet Rated
- Topaz SQ5TA/BZ-96 - Tenon Square Pole Adapter - Bronze - 110 lb Capacity
- Topaz SQ4TA2/BZ-96 - Tenon Square Pole 2-Fixture Adapter - Wet Rated - 110lb
- Topaz SQ5TA2/BZ-96 - Tenon Square Pole 2-Fixture Adapter - Bronze - Wet Rated
