Description

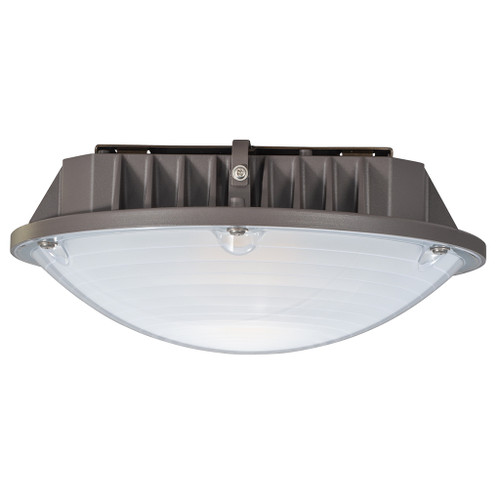

Weatherproof Round Canopy Fixture | CCT Selectable LED For Parking Garages, Canopies And Stairwells
Built for covered outdoor spaces, the Topaz Round Canopy combines contractor-friendly installation with versatile on-site light tuning - choose wattage and color temperature to balance energy savings and uniform illumination while benefiting from durable, wet-location construction.
KEY FEATURES:
- Field Selectable Performance: Three wattage settings (30W / 40W / 60W) and three color temperatures (3000K, 4000K, 5000K) for flexible on-site configuration.
- Durable Construction: Aluminum housing with domed polycarbonate lens and IP65 wet-location rating for exterior canopies and garages.
- Contractor Friendly: Removable mounting plate and ceiling or 1/2in NPT pendant mount options speed installation and service.
- Controls & Dimming: 0-10V dimmable driver enables smooth lumen control and integration with building controls.
- High Output: Up to 8,329 lumens at the 60W setting with Type-5 distribution for uniform coverage.
APPLICATIONS:
- Ideal for parking garages and covered parking structures.
- Well suited for exterior canopies and carports.
- Appropriate for stairwells and building entryways requiring wet-location fixtures.
- Installation Tip: Use the removable mounting plate for fast ceiling installs or the 1/2in NPT pendant option for higher ceilings.
SPECIFICATIONS:
- Product Code: CPR-60WPCTS-BZ
- Topaz by Halco SKU: T72768
- Wattage: Selectable 30W, 40W, 60W
- Lumens: 4,388 - 5,741 - 8,329lm
- Average Life: 50,000 hrs
- Color Temperature: Selectable 3000K, 4000K or 5000K
- CRI: 82
- Voltage: 120-277V
- Dimmable: Yes (0-10V)
- Beam Angle / Light Distribution: 90 Deg / Type-5
- Power Factor: 0.9
- Warranty: 5 years
- Finish: Bronze
- Mount Options: Mounting Plate To Surface (ceiling) or 1/2in NPT Pipe Threads for Pendant Mount
- Housing Material: Aluminum
- Lens: Domed Polycarbonate
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium - UL Listed - IP65 - Wet Location
- Market: Residential, Commercial, Industrial
- Min/Max Operating Temp: -40C (-40F) to 40C (104F)
