Description

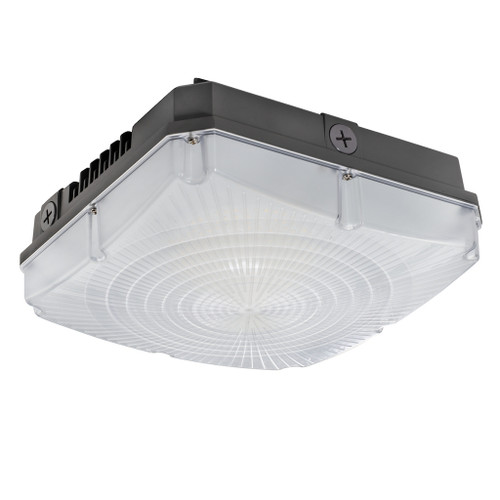

Commercial Square Canopy Fixture | Daylight 5000K Wet Location Lighting For Parking Garages And Walkways
Deliver reliable, glare-controlled illumination for exterior canopies and parking structures with this compact, die-cast LED canopy. The Topaz F-CPS/40W/50K/BZ combines robust IP65 protection, a hinged mounting plate for fast wiring, and energy-saving performance to reduce maintenance and operating costs in demanding commercial and industrial sites.
KEY FEATURES:
- Rugged Construction: Die-cast aluminum housing with powder coat finish and impact-resistant polycarbonate lens (IK08) for long-term durability.
- Weatherproof Performance: IP65 wet-location rating keeps fixtures running in outdoor canopies, carports, and covered walkways.
- Easy Installation: Hinged and removable mounting plate simplifies access for faster wiring and maintenance.
- Energy Efficient: 40W LED design delivers 5,000 lumens for lower energy use and reduced replacement frequency.
- Field Control: Dimmable via 0-10V for flexible lumen output and integration with building controls.
APPLICATIONS:
- Ideal for parking garages and exterior canopy lighting installations.
- Perfect for stairwells, underpasses, and service area illumination.
- Well-suited to retail canopies, gas stations, and covered walkways.
- Usage Tip: Use the hinged mounting plate to pre-wire fixtures for faster on-site installation and safer access.
SPECIFICATIONS:
- Product Code: F-CPS/40W/50K/BZ
- Topaz by Halco SKU: T70466
- Wattage: 40W
- Lumens: 5000 lm
- Color Temperature: 5000K (Daylight)
- CRI: 80
- Voltage: 120-277V
- Dimmable: Yes (0-10V)
- Average Life: 50,000 hrs
- Beam Angle: 155 Deg
- Power Factor: 0.9
- IP Rating: IP65 (Wet Location)
- Impact Rating: IK08
- Housing Material: Aluminum
- Lens: Polycarbonate
- Finish: Bronze
- Shape: Square
- Warranty: 5 years
- Sold In Multiples Of: 1
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium, UL Listed, RoHS
- Location Rating: Suitable For Wet Locations
- Emergency Backup: Not Included
Downloads
Disclaimers
*This product typically ships in 2 to 3 business days. Larger quantities may take longer than the stated lead-time. All lead-times are estimates, and you will be notified by email if it will take longer than 5 business days to ship. Halco products ship directly from the manufacturer and require a combined minimum purchase of $150 in Halco merchandise. Multiple Halco items may be combined to meet the minimum.
