Description
2x2 Square LED Troffer | Selectable 20/30/40W and 3500K/4000K/5000K

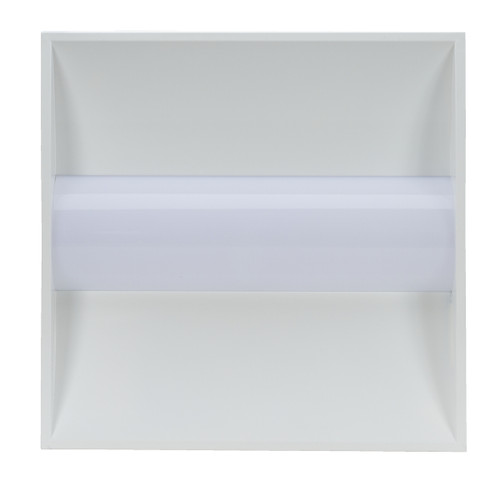

The Topaz F-VTC22/40/PCTS/D is a 2x2 LED troffer. Wattage and color temperature are selectable, so one fixture can match the light level and color the space needs. It is designed for 2x2 drop ceiling grids.
Features
- Field Selectable Power & CCT: Choose 20W, 30W or 40W and 3500K/4000K/5000K at installation for tailored illumination.
- Uniform Light Distribution: Deep-arc center-basket design provides smooth, low-glare output ideal for workspaces.
- Universal Voltage: 120-277V input supports broad electrical compatibility for retrofit and new construction.
- 0-10V Dimmable: Integrates with standard 0-10V controls to fine-tune lighting levels and save energy.
- Durable Construction: Steel housing with white finish and polycarbonate lens for longevity in commercial environments.
Specifications
- Product Code: F-VTC22/40/PCTS/D
- Size: 2x2 ft
- Fixture Type: Troffer
- Wattage: 20/30/40W selectable
- Lumens: 2,500/3,750/5,000 lm
- Color Temperature: 3500K/4000K/5000K selectable
- CRI: 80
- Voltage: 120-277V
- Dimming: 0-10V
- Location Rating: Damp location
- Warranty: 5 years
Installation & Compatibility
- Lays into standard 2x2 drop ceiling grids
- Emergency driver available (sold separately)
Rebates & Certifications
- ETL Listed
- DLC Listed
- DLC listings often qualify for utility rebates. Check with your local utility before you buy.
Applications
- Ideal for office ceilings and open-plan work areas requiring consistent, low-glare lighting.
- Suitable for hospitals and healthcare spaces that need adaptable color and output at install.
- Great for retail fixtures and merchandizing areas where tunable ambiance improves presentation.
- Installation Tip: Compatible with 15/16" and 9/16" T-grids or surface mount options; set CCT and wattage on-site for task-specific lighting.
Frequently Asked Questions
Can I change the settings after installation?
Yes. Wattage (20/30/40W) and color temperature (3500K/4000K/5000K) are selectable on the fixture.
Is it dimmable?
Yes, with a 0-10V dimming control.
Can I add emergency backup?
Yes. An emergency driver is available and sold separately.
