Description

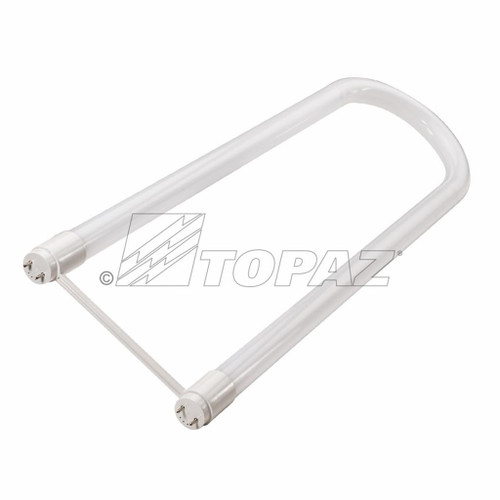

High-Efficiency U-Bend LED Tube | Cool White 4000K Retrofit Type B Ballast-Bypass For Offices, Retail, And Warehouses
Specifically engineered for commercial retrofit projects, the Topaz L4T8B/U6/840/15F replaces legacy U-bend fluorescents with a low-maintenance, energy-saving LED solution. Its ballast-bypass Type B design and uniform 160° light distribution deliver consistent Cool White illumination while reducing service cycles and energy costs.
KEY FEATURES:
- Ballast-Bypass Design: Type B wiring lets installers remove the ballast for a reliable retrofit with no compatibility issues.
- Energy Efficient: Produces 2,000 lumens at just 15.5W to lower operating costs versus fluorescent U-tubes.
- Uniform Output: 160° beam and full light around the bend for seamless end-to-end illumination in linear fixtures.
- Long Life: Rated for 50,000 hours to minimize replacement frequency and maintenance labor.
- Durable Construction: Polycarbonate housing and wide 120-277V operation make it suitable for varied commercial environments.
APPLICATIONS:
- Ideal for office ceiling troffers and recessed commercial fixtures.
- Well suited for retail displays and general area lighting.
- Recommended for warehouse and back-of-house linear lighting runs.
- Installation Tip: Remove the ballast and rewire per Type B (ballast-bypass) instructions for safe, long-term operation.
SPECIFICATIONS:
- Product Code: L4T8B/U6/840/15F
- Topaz by Halco SKU: T74156
- Wattage: 15.5W
- Lumens: 2,000
- Length: 48 in
- Base Type: Medium Bi-Pin (G13)
- Color Temperature: 4000K (Cool White)
- CRI: 80
- Voltage: 120-277V
- Beam Angle: 160°
- Average Life: 50,000 hours
- Warranty: 5 years
- Power Factor: 0.9
- Packaging: Sold in Multiples of 12
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Standard, UL Classified, RoHS Compliant
- Environment Rating: Suitable For Damp Locations
