Description

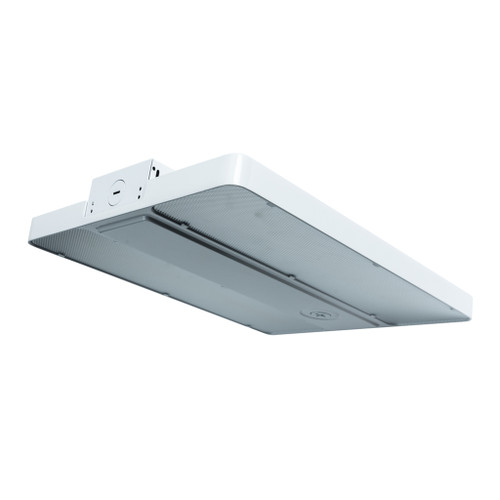

Versatile Linear Highbay Fixture | Sensor-Ready, Wattage Selectable For Warehouses And Commercial Spaces
Engineered for industrial and commercial spaces, this Power & Color Select linear highbay provides flexible field selection of lumen output and color temperature to simplify stocking and installation while reducing maintenance. Its durable die-cast aluminum housing and integrated sensor-ready socket make it ideal for retrofit and new construction warehouses, manufacturing floors, and large retail areas.
KEY FEATURES:
- Field Selectable Power & Color: Switch between 60W, 80W, or 100W outputs and 3000K/4000K/5000K color tones at installation for simplified inventory and precise lighting control.
- Sensor-Ready Design: Integrated low-voltage sensor socket allows easy addition of occupancy or daylighting controls for automated energy savings.
- Durable Construction: Die-cast aluminum body with center driver housing improves thermal management and long-term reliability in demanding environments.
- Comfortable, Wide Light Distribution: Diffused lens with a 90° wide beam reduces glare and delivers uniform illumination across large work areas.
- Included Hardware & Protection: Suspension-ready with V-hook and chain included, plus 6kV surge protection and 1/2" KO for controls or wiring.
- Dimming Capable: 0-10V dimming support enables smooth integration with building controls and dimming sensors.
APPLICATIONS:
- Ideal for warehouse aisles, manufacturing floors, and large commercial facilities requiring flexible, high-output illumination.
- Great for retrofit or new suspension installs where inventory flexibility and sensor integration reduce labor and operating costs.
- Well suited for retail back-of-house, gymnasiums, and distribution centers needing broad, low-glare lighting.
- Installation Tip: Use the integrated sensor socket with a compatible low-voltage occupancy sensor to enable automated dimming and occupancy control.
SPECIFICATIONS:
- Product Code: LHB-15L-W-PCS-U
- Topaz by Halco SKU: T75829
- Wattage: Selectable 60W, 80W, 100W
- Lumens: 9,500 - 12,500 - 15,000 lm
- Color Temperature: Selectable 3000K, 4000K, 5000K
- CRI: 80
- Dimmable: Yes (0-10V)
- Voltage: 120-277V
- Average Life: 50,000 hrs
- Power Factor: 0.9
- Mount Included: V-Hook and Chain (Suspension Ready)
- Environment Rating: Suitable for Damp Locations
- Warranty: 5-year limited warranty
CERTIFICATIONS & ADDITIONAL NOTES:
- Certifications: DLC 5.1 Premium, UL Listed, RoHS
- Operating Temperature: -40°F to 131°F (-40°C to 55°C)
